NEMA Package on Mounting Kits (for TD units)

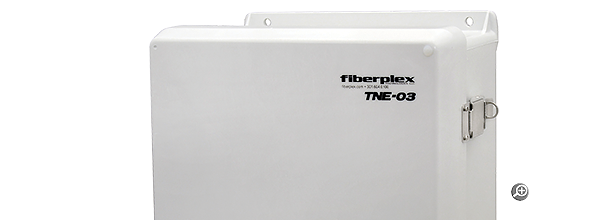

FiberPlex TNE-03 NEMA4 enclosure for up to 3 TD series units



The TNE-03 is an IP66 rated NEMA enclosure for powering, mounting, securing and environmentally hardening any FiberPlex brand TD or TIS units.


Overview
Harsh industrial problems require rugged solutions. The TNE-03 provides power and environmental protection for up to 3 TD Series devices.

Convenient DIN rail mounting provides a simple and easy installation for TD Series modules when used with the TD-DINR DIN rail adapters. An 18W 12V power supply comes standard. For light pole installations and other applications where industrial lighting voltage (eg 277 VAC) is available, the TNE-03-T includes a 208/277/380 VAC step-down transformer pre-installed. The enclosure carries a full NEMA 4x rating and is ready to be punched to accommodate your connectivity needs.

Note that environmentally sealed conduit connectors must be used to maintain watertight seal.

Applications
The TNE-03 is ideal for providing fiber connectivity to outdoor or environmentally exposed Security Cameras (IP or SDI), Mass Notification and networked Transportation systems.

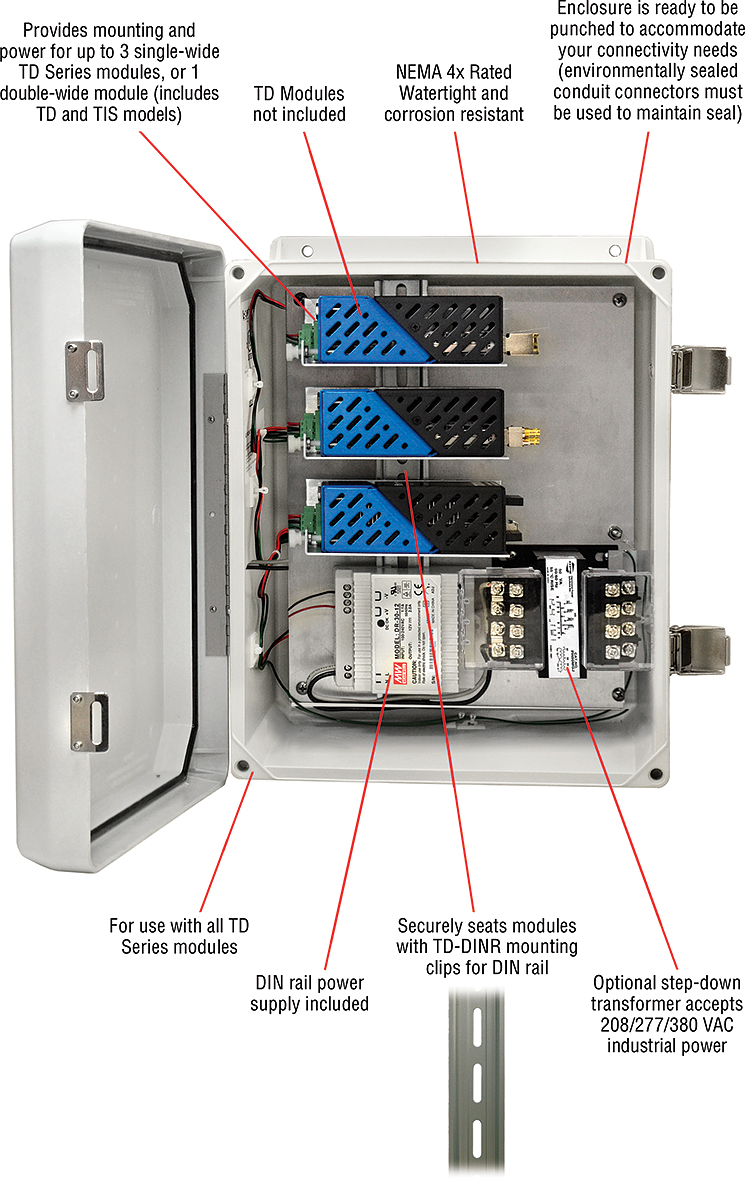

TNE-03 applications


Features
  • NEMA 4x rated (IP66)
  • Fits 3 TD models or 1 TIS model (double-wide TD) plus 1 standard TD
  • DIN rail power supply included
  • Optional step-down transformer accepts 208/277/380 VAC industrial power

Ordering
# Model # Description Availability
1 TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power General Availability
2 TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply General Availability
3 TNE-03-HV Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply and 270V Transformer General Availability
