ForeFront FF3210P 24 port VDSL2 DSLAM



Patton's Model 3210P VDSL2 DSLAM delivers 100 Mbps broadband for cost-effective, triple-play services, or high-speed private LAN connectivity over existing twisted pair infrastructures. This DSLAM is the ideal choice for system integrators, ISPs, and carriers.


Overview

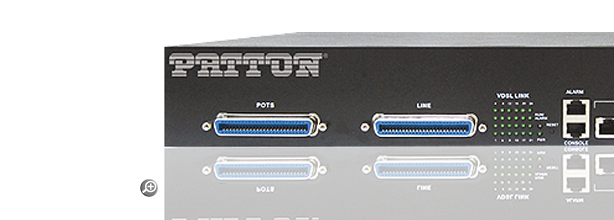

Patton’s Model FF3210P is a 1.5U compact 24-port VDSL2 IP DSLAM with 2 Gigabit Ethernet combo interfaces and built-in POTS/ISDN splitter. It is compliant to ITU-T G.993.2 standard and supports a VDSL2 30a profile that features 100 Mbps of symmetric data rate over the existing copper wires.

The FF3210P is an ideal choice for carriers, ISPs, and system integrators that are looking for a high performance broadband solution for their triple play (video, voice and data) applications.

The ForeFront 3210P is designed to connect with the growing carrier Ethernet infrastructure, providing great flexibility for service providers to customize their services and bringing them reliable, secure and high quality network access at low cost.

In addition, FF3210P offers user-friendly management interfaces that enable service providers to monitor and control their services in a highly secure and efficient way. It features support for port-based/protocol-based VLAN, Q-in-Q, VLAN mapping, VLAN translation, L2/L3 frame filtering and secured forwarding.

Furthermore, the FF3210P supports traffic classification including CoS (802.1), VLAN ID, ToS and DSCP. With all these powerful and advanced features, the ForeFront VDSL2 IP DSLAM is the perfect solution for network service providers to deploy their broadband access, IP TV, Hospitality and MDU applications.



Applications

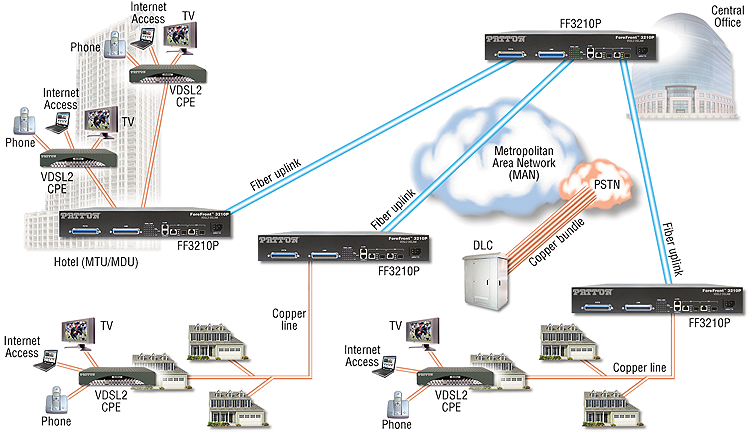

Using Patton’s ForeFront VDSL2 DSLAM, up to 24 full service links can be routed throughout campus and various MxU environments. The Model FF3210P aggregates the IP services delivered from the ISP or Service Providers with the POTS delivered from the PSTN. The POTS and Ethernet signals are then aggregated and sent over an already existing 2-wire telephony grade connection. The VDSL2 standalone unit is placed in each room to split the signal back into Ethernet (data) and POTS/ISDN (voice) for delivery to the end-user. Channel selectable symmetrical data rates up to 100 Mbps allow for a differentiation of services, and increased distance capabilities.

ForeFront 3210P


Features
  • Bandwidth Rich— Realize bandwidth in excess of 100 Mbps.
  • Operates Over Twisted Pair or Cat5+—Near fiber speeds without the cost of new cable or fiber installations or the hassles of wireless line of site.
  • Full VDSL2 Profile Support—8a/8b/8c/8d/12a/12b/17a/30a.
  • Secure—Supports port security and MAC address filtering.
  • Layer 2 Ethernet Switch—Configurable for port-based or protocol-based VLAN and VLAN mapping. Traffic classification features include QoS, ToS, and DSCP.
  • Flexible Ethernet Uplink Options—Dual auto-sensing 10/100/1000 full or half duplex Ethernet uplinks; copper or fiber selectable.
  • Easy to Monitor and Control—In-band (RS-232 console port) and out-of-band management capabilities (TELNET and HTTP), SNMP v1/v2/v3.

Ordering
# Model # Description Availability
1 FF3210P/24D24V/UI ForeFront 24 port VDSL2 IP DSLAM, POTS, 1.5U, 100-240 VAC General Availability

 Accessories



DSLAM | ForeFront 3210P Standalone VDSL2 DSLAM

Patton's Model 3210P 24-port VDSL2 DSLAM delivers cost-effective, triple-play services, or high speed private LAN connectivity over existing twisted pair infrastructures. This DSLAM is the ideal choice for system integrators, ISPs, and carriers.
