Products > Media Transport > Video, Fiber Testers & Splitters > Digital Video Multiviewer > Artel DigiLink DLC910 View Printable

Digital Video Multiviewer

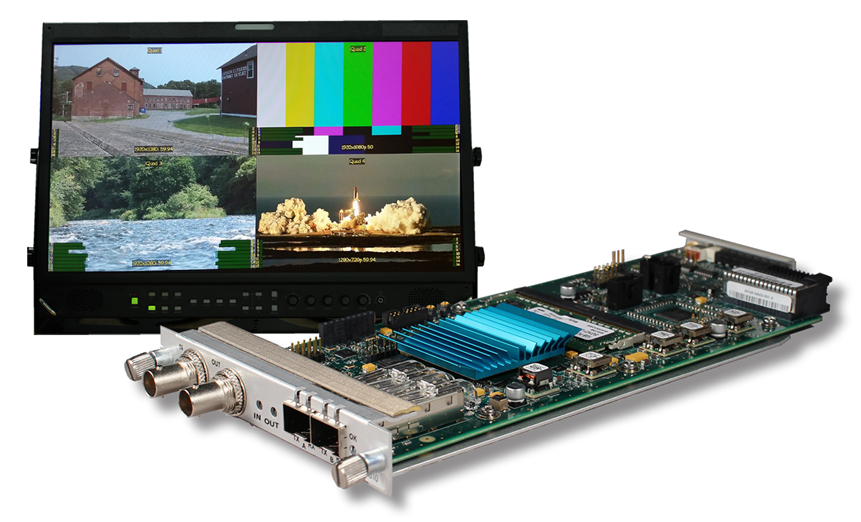

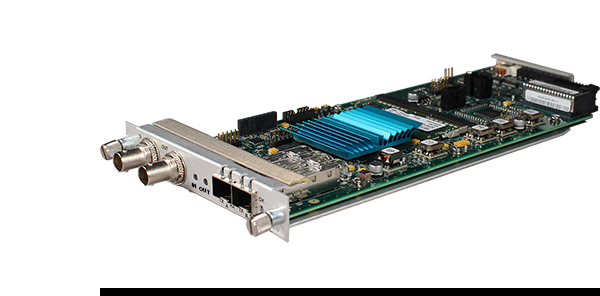

Artel DigiLink DLC910 DLC910 Quad SD HD 3G SDI Multiviewer

The DLC910 is a DigiLink based solution adding full featured 4 channel SD-HD-3G SDI Multiviewer capabilities. Consuming a single slot in any chassis the DLC910 seamlessly integrates into the platform enabling users to monitor the status of up to 4 independent SD, HD, and 3G-SDI video and audio channels.

Overview

The DLC910 is a DigiLink based solution adding full featured 4 channel SD-HD-3G SDI Multiviewer capabilities. Consuming a single slot in any chassis, the DLC910 seamlessly integrates into the platform enabling users to monitor the status of up to 4 independent SD, HD, and 3G-SDI video and audio channels.

A full featured multiviewer, the DLC910 includes format auto sense, audio monitoring with visual activity detectors, 16 character labels per quadrant, automatic aspect ratio, and quad or full screen displays. Wide options for inputs and outputs are available using external BNCs, optical or HDMI SFPs, or other modules in a chassis using DigiLink’s innovative integrated routing capabilities.

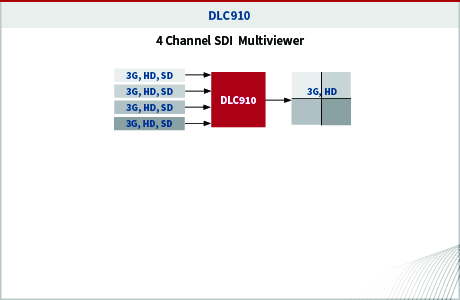

Applications

Features

Single slot quad multiview.

4 independent video channels
Auto detectand display input formats

Compatible with all DigiLink chassis Inputs supports most SDI formats.

3G-SDI (SMPTE 424M)
HD-SDI (SMPTE 292M)
SD-SDI (SMPTE 259M)

User programmable outputs.

1080i, 720p, 1080p
59.94 or 50Hz

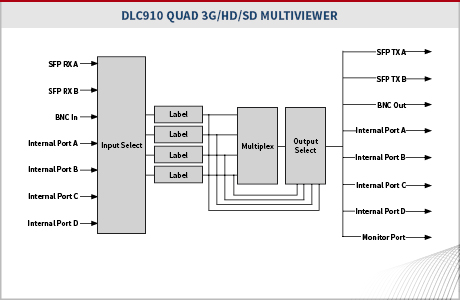

Flexible I/O options.

Optical (via SFP)
Rear panel BNC
HDMI (via SFP)
HD-BNC (via SFP)
Other modules in DigiLink chassis

Includes audio monitoring.

Audio pass through in full screen mode
Embedded audio detectors and on-screen level indicators

Full-featured.

16 character labels per quadrant
Automatic aspect ratio output
Front and rear panel status LEDs
Display of input signal format shown on each quadrant
Fixed quad split or full screens
Full screen mode selectable through DL Manager, SNMP, or front push button switch
Field upgradable

Ordering

#	Model #	Description	Availability
1	390-008910-00	DigiLink, Model DLC910, Multiviewer Monitoring Device	Pre-Order Available
