Uncompressed Video over IP

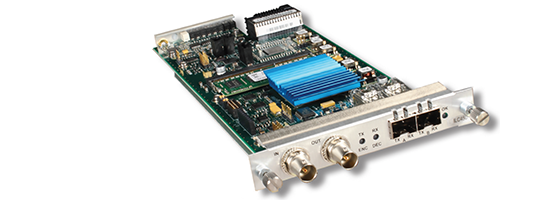

Artel InfinityLink ILC450 10G HD/SD-SDI, ASI IP Gateway & GigE Data Transport

The InfinityLink ILC450 10G HD/SD-SDI, ASI IP Gateway & GigE Data Transport utilizes SMPTE 2022-1/2 or 5/6 Video-Over-IP Standards for transport of HD/SD-SDI, ASI video and includes a Gig-E IP interface to bridge IP data over the 10 Gig Ethernet IP interface.

• Video-Over-IP Transport of HD/SD-SDI and ASI.
• Single module user configurable as a transmitter or receiver.
• Fully transparent carriage of HD/SD-SDI, and ASI including audio and ancillary data.
• Gig E data bridged over 10G interface.

• 1.485 Gb/s HD-SDI (SMPTE 292M).
• 270 Mb/s SD-SDI (SMPTE 259M-C, ITU 656).
• >DVB-ASI.

• SMPTE 2022-6 IP Encapsulation of HD and SD-SDI.
• SMPTE 2022-2 IP Encapsulation of DVB-ASI.
• SMPTE 2022-5 FEC recovers lost, damaged, or delayed packets of HD and SD SDI.
• SMPTE 2022-1 FEC recovers lost, damaged or delayed packets of ASI.

• Selectable transmitter row and column Forward Error Correction settings.
• Selectable receiver buffering.
• Designed to withstand burst outages in excess of 3 ms.

• WDM (1310 nm, 1550 nm).
• CWDM ITU G.694.2 (Channels 27-61).
• DWDM ITU G.694.1 (Channels 21-60).

• Optical budget to 33dB.
• WDM (1310nm, 1550nm).
• CWDM ITU G.694.2 (Channels 27-61).
• DWDM ITU G.694.1 (Channels 21-60).

Integrating seamlessly within the InfinityLink platform, the ILC450 module is customer configurable via InfinityLink Manager or via SNMPv2 as either a Video-Over-IP Transmitter (TX mode) or a Video-Over-IP Receiver (RX mode).

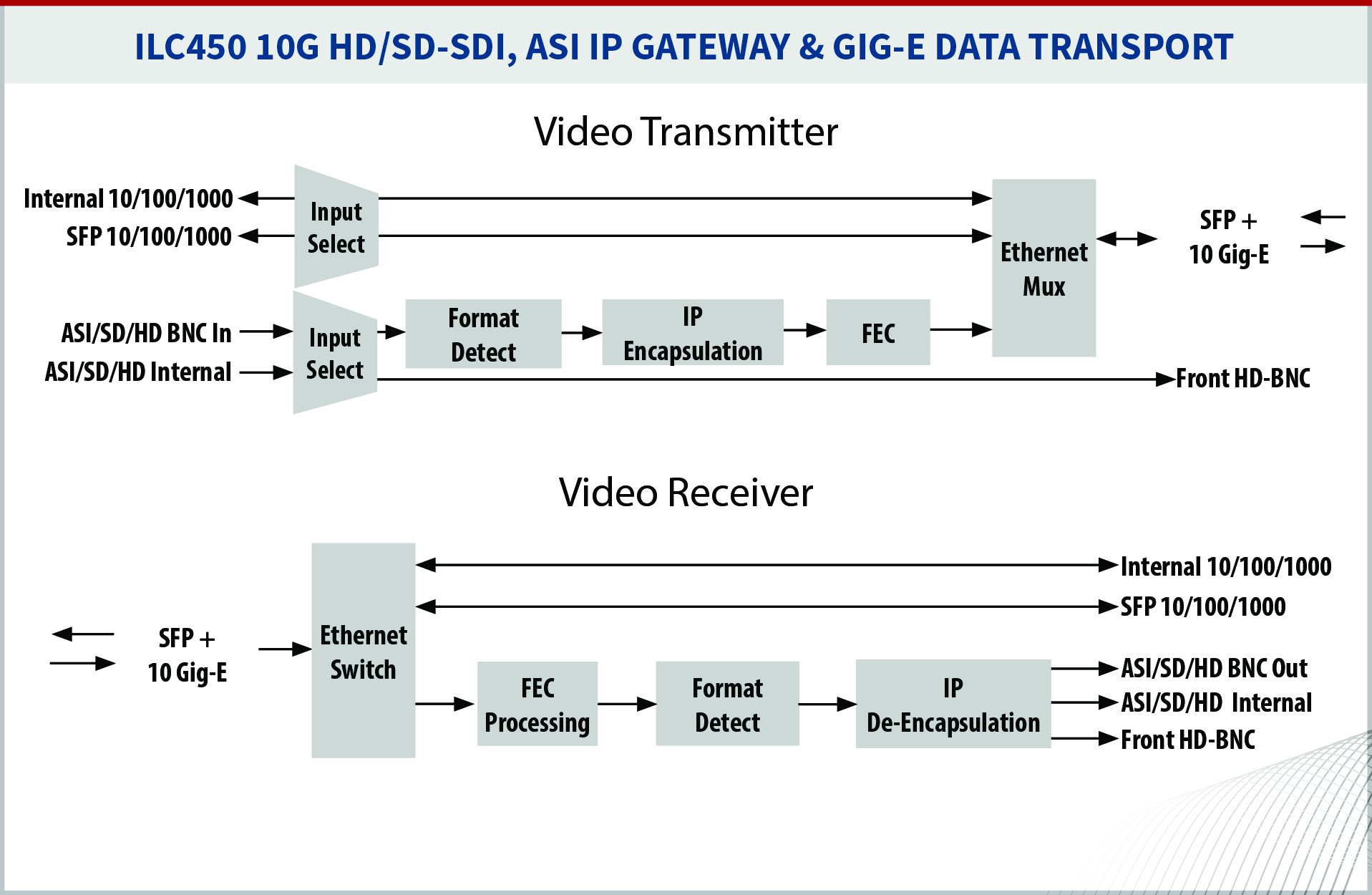

In TX mode, the ILC450 packetizes the video to SMPTE 2022-6 or 2022-2 encapsulation standards and provides users with flexible SMPTE 2022-5 or 2022-1 FEC configurations to maximize reliability and minimize latency and overhead.

In RX mode, its robust multi-pass FEC correction algorithm and user configurable packet buffering enable reliable performance over less than ideal Ethernet links.

The card utilizes SMPTE 2022-1/2 or 5/6 Video-Over-IP Standards for transport of HD/SD-SDI, ASI video and includes a Gig-E IP interface to bridge IP data over the 10 Gig Ethernet IP interface.

The ILC450 sets the bar for reliable, low cost, and easy to configure HD/SD-SDI, ASI, and Gig-E transport over IP.
