Precision Timing Protocol (PTP) Switches

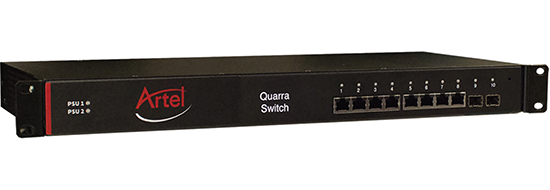

Artel Quarra PTP - 1G 1 Gbps Precision Timing Protocol (PTP) Ethernet Switch

Artel's Quarra 1Gbps PTP Ethernet switches are a carrier grade Ethernet switch with one of the industry's most accurate IEEE 1588v2 timing. Ideal for pro AV, audio, video, broadcast, defense and security, finance, utilities, telecom, and enterprise IP.

• Comes with 8x 10/100/1000 Copper (RJ-45) Local Ethernet Ports and 2x 1-2.5 Gig SFP Ethernet Uplink ports.
• Industry’s most Accurate IEEE 1588 Timing & Synchronization for nanosecond accurate timing.
• Synchronous (L1) Ethernet, Master and Slave. Precision clock timing using DSPLL® technology.
• 1pps reference. Network wide synchronization using IEEE1588 or SyncE.
• SMPTE Standards-based Timing
  • ST 2110-10 System Timing and Definition
  • ST 2059-2 SMPTE Profile for Use of IEEE-1588 Precision Time Protocol in Professional Broadcast Applications
• Ravenna AES67 approved.
• IEEE802.1 AVB.
• Full management from Web GUI or command line interface. No training required-units can be quickly and easily configured.

Artel's Quarra range of IP PTP switches are designed for Carrier Class applications where accurate timing and control is required. These switches are aimed at the professional markets of Audio/Video Broadcast, Defense & Security, Finance, Utilities, Telecom, and Enterprise IT.

The Quarra switches are designed as either a standard 1RU rackmount unit with dual power supplies, or a half-width 1RU unit with a single power supply, the switches are available in several configurations of 1 Gigabit and 10 Gigabit interfaces, supporting a best-in-class layer 2 IEEE 1588v2 algorithm.

A 1pps external reference input from GPS is included as standard, and options include an internal layer 1 Synchronous Ethernet module. Quarra switches also support IGMP v2/3, QoS, protection switching, VLAN, MEF service delivery and network OAM.

Quarra switches support SMPTE Standards-based Timing ST 2110-10 and ST 2059-2 SMPTE and are RAVENNA AES67 approved.

Ideal for:

• Live video/audio broadcast/production over IP utilizing IEEE1588 timing, QoS and Multicast filtering.
• Broadcast DTT/DTV IP distribution, utilizing IEEE1588 and SyncE timing to replace or backup GPS timing at base stations.
• Telecom networks, providing a high level of network timing.
• Financial/trading networks, utilizing our IEEE1588 precise nanosecond time synchronization.
