Overview

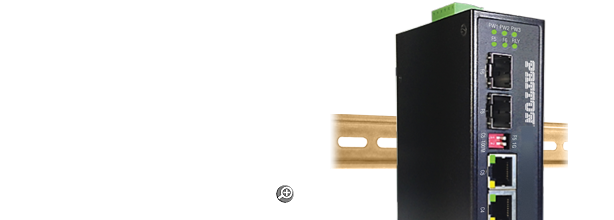

Patton’s FP1005E Unmanaged Industrial Gigabit Ethernet Switch supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

The FP1005E is housed in an sturdy IP30 rated DIN-rail enclosure with wall mount options.The physical layer interfaces include 5 RJ45 10/100/1000 Ethernet ports, 1 100/1000 SFP slot and 1 SFP/TX combo slot that can be used for fiber trunk connections. To ensure operation in harsh environments, the FP1005E provides additional EFT and ESD protection that prevents unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 75°C (-40 to 167°F).

SFP Ordering Information
Fiber SFP Data Module
Copper SFP Modules

Applications

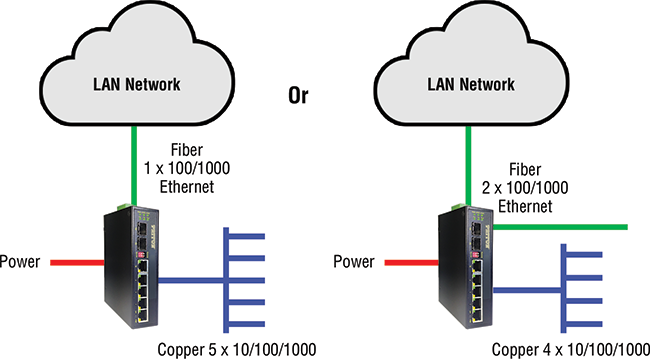

FiberPlex™ FP1005E application diagram

Features

System Interface/Performance -
- Supports auto MDI/MDI-X function
- 6 ports include 4 10/100/1000TX RJ45 ports, 1 100/1000 SFP cage, and 1 SFP/TX combo SFP cage
- Store-and-forward switching architecture
- 12-Gbps backplane (switching fabric)
- 1K MAC address table
- 9K Jumbo frame supports
- 1M Packet buffer size
- ESD protection: 6,000 VDC support
Power Input -
- Redundant power input design: 12�56 VDC
- Built-in relay output for power failure detection
- Surge protection: 2,000 VDC support
Operating Temperature Range - EOT: -40 to 75�C
Case/Installation -
- IP30 rugged metal case design
- Installation in pollution degree to environment
- DIN-rail and wall mount support

Ordering

Model #

Description

Availability

FP1005E/2SFP/DC

Un-Managed Industrial Gigabit Ethernet Switch; 4 x 10/100/1000 (RJ45); 1 x GigE SFP, 1 x SFP/TX Combo, -40 to 75C; 12-48VDC redundant input

General Availability

Accessories

Additional Charge:
Power Plugs & Cords
26000002 (Qty: 1)	PCLIP, EU, FOR PS-03671H1-020
Power Supply
PS-03671H1-020 (Qty: 1)	Extended Temperature AC Universal Power Adapter; -40 to 85C; 21-27V; 15W; Open End
SFP
SFP-MC03XC-3131-2	SFP, Optical, Multimode, 155 Mbps (OC3), 1310nm Transceiver, 2Km
SFP-MC24XC-3131-2	SFP, Optical, Multimode, 1.25 Gbps (OC24), 1310nm Transceiver, 2Km
SFP-MC24XC-8585-0	SFP, Optical, Multimode, 1.25 Gbps (OC24), 850nm Transceiver, <500m
SFP-MC92XC-3131-1	SFP, Optical Multimode LC, 10GB (OC192), Data Transceiver, TX:1310 nm RX:1310 nm, < 2km, MSA
SFP-MC92XC-8585-0	SFP, Optical Multimode LC, 10GB (OC192), Data Transceiver, TX:850 nm RX:850 nm, < 500m, MSA
SFP-RTGTXC-0000-0	SFP, RJ45, Copper 10/100/1000 Ethernet Transceiver, MSA
SFP-SC03XC-3131-B	SFP, 155MB TX/RX 1310nm 20km MSA
SFP-SC24XC-3131-B	SFP, Optical Singlemode LC, 1.25GB (OC24), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA
SFP-SC48XC-3131-B	SFP, Optical Singlemode LC, 2.5GB (OC48), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA
SFP-SC92XC-3131-A	SFP, Optical Singlemode LC, 10GB (OC192), Data Transceiver, TX:1310 nm RX:1310 nm, 10km, MSA

Un-Managed Industrial Switches
FiberPlex FP1005E Un-Managed Industrial Gigabit Ethernet Switch 6 Port 10/100/1000, 4 Copper + 1 x GigE SFP + 1 x SFP/TX Combo; industrial packaging

The FP1005E is an industrial-grade, 6-port 10/100/1000 Ethernet switch ideally suited for Industrial Ethernet communications over a moderate bandwidth Gigabit fiber trunk.
