Patton ForeFront 5442

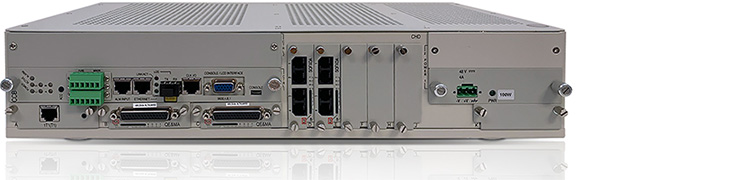

Overview

The Patton FF5442 is an access multiplexing, aggregation and transport platform that supports inter-networking of various access interfaces and trunks onto E1 or T1 lines for convenient backhaul and switching. The unit provides access for a wide variety of TDM, voice, serial and packet interfaces.

Acting as miniature Cross Connect: one or more of the WAN ports can be used as a Drop & Insert port where sub-rate interfaces and fractional E1/T1 lines can be groomed or multiplexed on a full E1/T1 line.

As an Access Multiplexer, the unit is designed to combine digital access interfaces, including TDM, IP, and Voice interfaces for convenient transport and switching.

A controller module delivers a non- blocking Nx64K cross-connect matrix for up to 2048 DS0’s. The FF5440 can be used as a gateway into the IP networks using TDM-over-Packet, circuit emulation technologies including TDMoE and TDMoIP. The devices also support Circuit Emulation using CESoPSN (Nx64K) and SAToP (Unframed E1/T1).

Redundancy is available by way of dual CPU controller cards and power supply options, making the product an excellent fit for critical applications.

Management, control, and diagnostics can be done using the local console port (VT-100 terminal), or remotely managed using Ethernet, Telnet, and SNMP. An in-band management channel with GUI is also available. LED indicators are included on the networking plugin cards.

The platform is designed for Carrier-Class mission critical installations. The chassis is made of rugged reinforced aluminum for durability and the unit comes with dual controller and power modules for resilience and redundancy.

Available Line Interface Cards include;

> T1 Interface Card		> 75 Ohm E1 Interface Card
> 120 Ohm E1 Interface Card		> Quad E1 Interface Card
> Quad E1 Interface Card		> Quad T1 Interface Card
> Router Interface Card		> Fiber Optical Interface Card
> Quad E&M Voice Card		> Quad FXS Voice Card
> LS-Fiber Optical Interface mini-Card		> 1-channel Serial DTE Interface (X.21/V.35/RS232)
> Analog Bridge Card		> Echo Canceller Card

Applications

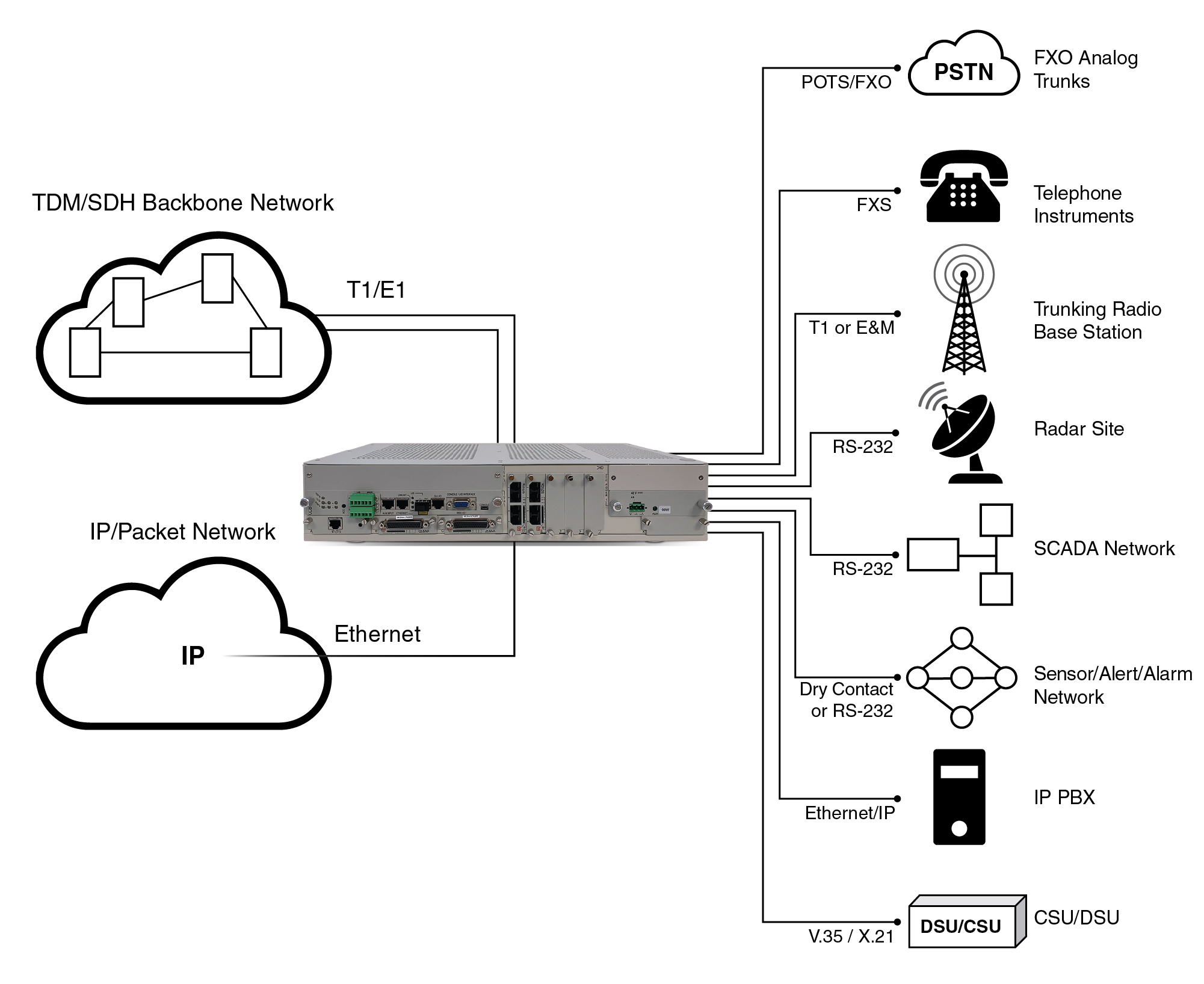

The FF5442 allows circuit-switched (T1/E1) and sub-rate interfaces (FXS, FXO, E&M, RS-232, V.35, X.21 etc.), to be digitally cross-connected, rearranged, transmuxed (signal conversion) interconnected, and aggregated. Traffic from these interfaces can also be delivered over Packet Switched Networks using TDMoE, TDMoIP or Circuit Emulation using CESoPSN and SAToP.

Features

Carrier Class - An ETSI style shelf (frontal card access) is equipped with 2 Controller Slots, 2x DC Power Supply Slots (1-Primary & 1-Back-up of each) or 1x AC Power Supply Slot and 9 Networking Slots.
Wide Selection of Networking Cards - T1/E1, Fiber, POTS, FXO, FXS, E&M, RS232, V.35, X.21 & OCUDP Mini-Cards.
Digital Access Cross Connect - The system provides full DS0 level DACS (Digital Access Cross-Connect System) capabilities with full non-blocking nx64K support with load sharing.
Multiplexing - Including ADM (Add Drop Mux) Drop & Insert capabilities.
Management and Control - Management is performed using a Console (VT-100 terminal), Telnet, Web GUI and/or In-band management with SNMP v.1 and v.3. Native network management and full interoperability with 3rd party SNMP-based GUI network management systems. Supports RADIUS authentication.
Network and Circuit Protection - E1/T1/FOM 1+1 network protection, DS0 Level Nx64K circuit protection and PDH ring protection (QE1/QT1, FOM, Mini QE1/QT1)
Extensive Inter-Networking Protocol Support - Provides PWE3 Services (RFC 3985) for carrying networking services (such as ATM, Ethernet, TDM, and SONET/SDH) over a packet-switched network (PSN) including Framed E1/T1 (CESoPSN, and MEF8 for circuit emulation of TDM over IP), Unframed E1/T1: SAToP (pseudowire encapsulation according to RFC 4553) and PDH Clock Recovery (ACR/System Clock per PW configurable).

Ordering

Please email [email protected] for application assistance, SKU selection and chassis configuration guidance.

#	Model #	Description	Availability
CHASSIS AND POWER
1	FF5442/AC/DC48AD	Single AC (3.6 Amps, Auto Sensing 110-120 VAC & 220-240 VAC) to Voltage DC (+48 Volts DC, 5 Amps)	Pre-Order Available
2	FF5442/BP-1-9S-F	Blank Panel for Half Slot 1-9 (Flat)	Pre-Order Available
3	FF5442/BP-CTRS-F	Blank Panel for Controller Slot (Flat)	Pre-Order Available
4	FF5442/-BP-PSS-F	Blank Panel for Power Supply Slot (Flat)	Pre-Order Available
5	FF5442/CH	Chassis includes the following empty slots. 2 Controller Slots, 2 Power Supply Slots, and 9 Networking Slots	Pre-Order Available
6	FF5442/DC48	Single -48 Volts DC (-36 to -75 Volts DC) Plug-in Power Module (100W)	Pre-Order Available
CONTROLLER CARDS AND LICENSES
7	FF5440/E1RL	Feature Activation License for a CPU Card to Support Framed E1 PDH-Ring Function	Pre-Order Available
8	FF5440/LCT-(MAP-34)	Feature Activation License for a CPU Card to Support LCT Graphical Configuration Software for TDM Application	Pre-Order Available
9	FF5440/T1RL	Feature Activation License for a CPU Card to Support Framed T1 PDH-Ring Function	Pre-Order Available
10	FF5442/CCB	CPU Card with E1/T1 External Clock & Management CLI Software & Activation License	Pre-Order Available
11	FF5442/CCPA	Packet Controller Module, Supports Cross-Connect Function and Two Physical Combo GbE (SFP/RJ45) Interfaces for TDMoE Uplink. One Micro USB Console Port and one RJ45 SNMP Port on Board. Supports SAToP (CCPA T1 SAToP), CESoPSN, and MEF-8. Up to 64 Pseudowires. Supports SyncE	Pre-Order Available
NETWORKING CARDS
12	FF5442/1310FC/30KM-1CHH	Fiber Optical Plug-in Card w/ Single Optical Module with Dual Uni-directional Fiber, 1310 nm, FC Optical Connector, 30km - S1.1	Pre-Order Available
13	FF5442/1310SC/30KM-1CHH	Fiber Optical Plug-in Card w/ Single Optical Module with Dual Uni-directional Fiber, 1310 nm, SC Optical Connector, 30km - S1.1	Pre-Order Available
14	FF5442/1310SC/50KM-1CHH	Fiber Optical Plug-in Card w/ Single Optical Module with Dual Uni-directional Fiber, 1310 nm, SC Optical Connector, 50km - L1.1	Pre-Order Available
15	FF5442/1310T1550RSC/30KM-1CHH	Fiber Optical Plug-in Card w/ Single Optical Module with Single Bi-directional Fiber, 1310 nm Transmit & 1550 Receive, SC Optical Connector, 30km - S1.2	Pre-Order Available
16	FF5442/1550SC/100KM-1CHH	Fiber Optical Plug-in Card w/ Single Optical Module with Dual Uni-directional Fiber, 1550 nm, SC Optical Connector, 100km - L1.2	Pre-Order Available
17	FF5442/1550SC/20KM-1CHH	Fiber Optical Plug-in Card w/ Single Optical Module with Dual Uni-directional Fiber, 1550 nm, SC Optical Connector, 20km - S1.1	Pre-Order Available
18	FF5442/1550T1310RSC/30KM-1CHH	Fiber Optical Plug-in Card w/ Single Optical Module with Single Bi-directional Fiber, 1550 nm Transmit & 1310 Receive, SC Optical Connector, 30km - S1.2	Pre-Order Available
19	FF5442/AVBA-1CHH	Analog Voice Bridge Plug-in Card	Pre-Order Available
20	FF5442/-BP-PSS-F-1CHH	1Channel C37-94 Plug-in 4-Port lug-in Card	Pre-Order Available
21	FF5442/E120-1CHH	1-Channel E1-120 Mini Plug-in Card	Pre-Order Available
22	FF5442/E120-4CHH	4-Channel E1-120 Mini Plug-in Card	Pre-Order Available
23	FF5442/E75-1CHH	1-Channel E1-75 Mini Plug-in Card	Pre-Order Available
24	FF5442/E75-4CHH	4-Channel E175 Mini Plug-in Card	Pre-Order Available
25	FF5442/EC-1CHH	Echo Canceller Plug-in Card	Pre-Order Available
26	FF5442/EM24-4CHH	Jumper Selectable: 2/4-Wire; A/B Side 4-Channel E&M Voice Mini Plug-in Card, Complied with IEEE 1613 Standard	Pre-Order Available
27	FF5442/FOMLS/1C37-1CHH	Low-speed single-slot plug-in card designed to transport C37.94 teleprotection signals between power substations. Each port is protected by Automatic Laser Shutdown (ALS). Teleprotection signals are then cross-connected by the XCU to merge onto E1/T1 network.	Pre-Order Available
28	FF5442/FXOA-4CHH	4-Channel FXO-A Voice Plug-in Card	Pre-Order Available
29	FF5442/FXSA-4CHH	4-Channel FXS-A Voice Mini Plug-in Card	Pre-Order Available
30	FF5442/MAG-4CHH	4-Channel Magneto Plug-in Module with Ring accrossL1 & GND and L!&L2. Software Programmable	Pre-Order Available
31	FF5442/OCU-DP-1CHH	1-Channel OCU-DP Mini Plug-in Card with 1-DB25	Pre-Order Available
32	FF5442/RLW-REV2H-64CHH	2-LAN Port / 64-WAN Port Router/Bridge Plug-in Card	Pre-Order Available
33	FF5442/RS232-1CHH	1-Channel RS232 Mini Plug-in Card	Pre-Order Available
34	FF5442/T1-1CHH	1-Channel T1 Mini Plug-in Card	Pre-Order Available
35	FF5442/T1-4CHH	4-Channel T1 Mini Plug-in Card	Pre-Order Available
36	FF5442/V35-1CHH	1-Channel V35 Mini Plug-in Card	Pre-Order Available
37	FF5442/X21-1CHH	1-Channel X.21 Mini Plug-in Card	Pre-Order Available
