Patton ATL-6410

Overview

SET UP AND CONFIGURATION

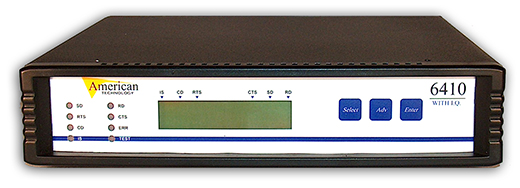

The Raymar-Telenetics 6410 w/IQ can be easily configured via the easy-to-read LCD screen. Whether configuring, testing, or viewing line utilization, the LCD screen delivers information clearly and precisely. Software features like rate adaption, BERT testing, and Line Analysis with IQ are all easily operated from the front panel.

ANTI-STREAMING

The 6410 w/I.Q. supports banking (ATM Machine) applications with a software programmable anti-streaming feature. This feature allows the user to disconnect a failed device which has seized the multi-drop circuit permanently. Imagine many machines on a multi-drop circuit and not being able to tell which one (or two) machines are the cause of the problem. This feature solves this problem by isolating the specific unit(s) that has failed, leaving the remaining units in operation.

BUILT-IN TEST SET

No expensive test equipment is needed! In just a few minutes, you can accurately test and report the exact line problem to your service provider.

MODELS

The standard 6410 w/IQ is operated with 115VAC power. For applications requiring DC power or high temperature conditions, the new -48VDC and +130VDC models operate in temperatures to 70°C.

RACK MOUNT

For applications requiring high-density, up to 16 ATL-6410 devices can reside in a RM16 nest.

Features

Flexible DTE Interfaces - Supports RS-232, V.35 or RS-530 DTE Interface.
DB-25 and M/34 Connectors - Unit have both DB25 (RS-232) and M/34 (V.35) Connectors (Optional RS530 (DB25) to Replace V.35).
Data Rates - Data Rates - Supports DDS Data Rate of 64Kbps 56Kbps, 19.2Kbps 9.6Kbps, 4.8Kbps or 2.4Kbps.
Built-In Test Set - Supports Intelligent Quantitative Parametric Testing. Ideal for Utility Companies with SCADA Traffic or Test Applications.
LCD Set-Up - Easy Set Up and Configuration.
Reliable Multi-Drop - Anti-Streaming Feature for Reliable Multi Drop Applications.
Industrial Grade - Standard and Extended Temperature.
Industrial Grade - Standard and Extended Temperature.
Flexible Power - Including 115VAC, -48VDC and +130VDC.

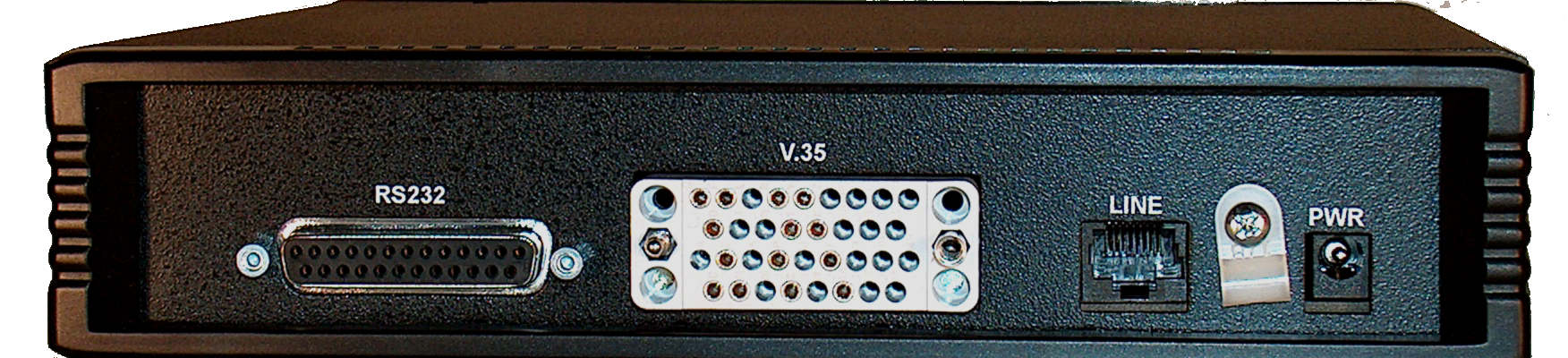

RayTel ATL-6410IQ Rear View

Ordering

#	Model #	Description	Availability
1	ATL-6410IQ	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd	General Availability
2	ATL-6410IQ-A	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd, Adtran F/W	Pre-Order Available
3	ATL-6410IQ-B	ATL, 64K Csu/Dsu Rs530, Lcd	Pre-Order Available
4	ATL-6410IQ-B2	ATL, 64K Csu/Dsu Rs232, Rs530, Lcd, 117Vac	Pre-Order Available
5	ATL-6410IQ-B2-HVDC	ATL, 64K Csu/Dsu Rs530 & Rs232, Lcd, 130Vdc	Pre-Order Available
6	ATL-6410IQ-B2-LVDC	ATL, 64K Csu/Dsu Rs530 & Rs232, Lcd, 48Vdc	Pre-Order Available
7	ATL-6410IQ-B-HVDC	ATL, 64K Csu/Dsu Rs530, Lcd, Hi Volt Dc	Pre-Order Available
8	ATL-6410IQ-ET	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd Extented Temp	Pre-Order Available
9	ATL-6410IQ-HVDC	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd, 130Vdc	Pre-Order Available
10	ATL-6410IQ-HVDC-ET	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd, 130Vdc, Ext Tmp	Pre-Order Available
11	ATL-6410IQ-HVDC-ETMB	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd, 130Vdc Ext Tmp Mb	Pre-Order Available
12	ATL-6410IQ-LVDC	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd, 48Vdc	Pre-Order Available
13	ATL-6410IQ-LVDC-A	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd, 48Vdc, , Alternate F/W	Pre-Order Available
14	ATL-6410IQ-LVDC-ET	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd, 48Vdc, Ext Tmp	Pre-Order Available
15	ATL-6410IQ-LVDC-ETMB	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd,48Vdc, Ext Tmp Mb	Pre-Order Available
16	ATL-6410IQ-LVDC-L2	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd, 48Vdc, Dvacs	Pre-Order Available
17	ATL-6410IQ-R	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd, Rack Mount	Pre-Order Available
18	ATL-6410IQ-TTCE-WPDC	ATL, 64K Csu/Dsu V.35 & Rs232, Lcd, 48Vdc Et, Mb	General Availability
19	ATL-6410IQ-TVCE-B2MB	ATL, 64K Csu/Dsu Rs530 & Rs232, Lcd, 48Vdc, Et, Mb	Pre-Order Available
20	ATL-6410RM	ATL, 64K, Csu/Dsu Rs232, Rm16 Lcd, ATL	General Availability
21	ATL-6410RM-A	ATL, 64K, Csu/Dsu Rs232, Rm16 Lcd, ATL	Pre-Order Available
22	ATL-6410RM-V35	ATL, 64K, Csu/Dsu V.35, Rm16 Lcd, ATL, Db25	Pre-Order Available

T1 and DDS CSU/DSUs
RayTel ATL-6410 Industrial DDS CSU/DSU Asynchronous/ Synchronous with RS-232, V.35 or RS-530

This DDS CSU/DSU offers built-in Intelligent Quantitative Parametric Testing, Flexible DTE Interface types and Reliable Multi-Drop support.
