All-IP Session Border Controllers
SmartNode SN5200 eSBC + Router | 4-to-32 Sessions



SIP eSBC for up to 32 SIP Sessions, the SmartNode� 5200 Session Border Controller & router bridges the wide range of IP PBX products to their service providers ensuring security and a high level of efficiency in the VoIP network.


Overview
--Image: Unified Communications 2009 Product of the Year -- The SmartNode 5200 Enterprise Session Border Controller + Router bridges the wide range of IP PBX products to their service providers ensuring security and a high level of efficiency in the VoIP network. Connecting the Enterprise’s LAN to an Internet Telephony Service Provider (ITSP), the SN5200 creates a single conduit for multimedia components including voice, video and data.

Through the SIP Back-to-Back User Agent (B2BUA), the SmartNode 5200 provides a common interface into the service provider network providing resolution of any differences between the SIP from the IP PBX and the service provider softswitch.  The B2BUA also isolates your network from the outside world to hide your private addresses and network topology for security purposes.

For additional security, the SN5200 includes SIP-aware NAT and access controlled lists ACLs for maintaining secure communications when SIP traffic crosses the Enterprise edge.

In addition, routing capabilities include RIP v1/v2, virtual router redundancy protocol (VRRP), loopback interfaces as well as advanced techniques like policy based routing (PBR). Furthermore, QoS keeps malicious traffic from effecting bandwidth requirements of PBR-marked essential traffic.


Applications

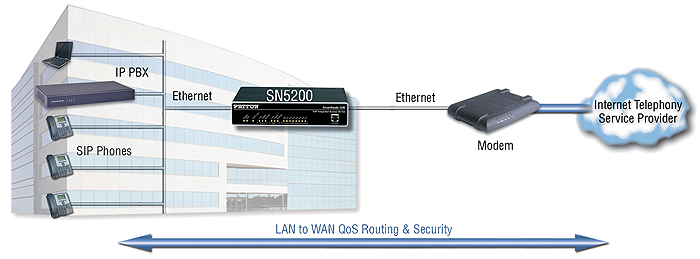

SmartNode5200 application diagram


Features
  • Up to 32 SIP Sessions—Hardware ready for 4 SIP Sessions and software upgradeable to 32 SIP Sessions.
  • IP Routing—RIP v1/v2, VRRP, Policy Based Routing, Loopback/Virtual Interface, NAPT-capable edge router with included VPN capabilities.
  • QoS and Security—Deliver secure, toll-quality voice communications with Patton’s DownStreamQoS™ with adaptive traffic management and shaping—plus secure voice-over-VPN with AES/DES strong encryption and extended ACL capabilities.
  • SIP Registrar - License is included in ALL eSBC products.
  • 10/100 Ethernet—One 10/100 WAN Ethernet port and four 10/100 LAN Ethernet ports.
  • Why SmartNode™?
    • Patton Quality
    • Made in the USA
    • Unrivaled Customer Support
    • FREE Support and Firmware Upgrades

Ordering
# Model # Description Availability
1 SN5200/32B/EUI SmartNode eSBC, 32 SIP Sessions no RTP transcoding (SIP b2b UA) not upgradeable, 5x Fast Ethernet, external UI power NA/EU (100�240) General Availability

 Accessories

2 SN5200/4B/EUI SmartNode eSBC, 4 SIP Sessions no RTP transcoding (SIP b2b UA) upgradeable (max. 32), 5x Fast Ethernet, external UI power NA/EU (100�240) General Availability

 Accessories
