Session Border Controller + Router for up to 64 Transcoded Calls

Overview

The SmartNode 5480 Enterprise Session Border Controller + Router is a high performance solution that bridges a wide range of IP PBX products to their service providers ensuring security and a high level of efficiency in the VoIP network. Connecting the Enterprise’s LAN to an Internet Telephony Service Provider (ITSP), the SN5480 creates a single conduit for multimedia components including voice, video and data. Evolving from Patton’s award winning SmartNode 5400 Series, the next generation SmartNode 5480 Series comes now with IPv6 upgradeable hardware.

Through the SIP Back-to-Back User Agent, the SN5480 provides a common interface into the service provider network providing resolution of any differences between the SIP from the IP PBX and the service provider softswitch. Additionally, the SN5480 provides CODEC transcoding for up to 64 SIP sessions insuring the most efficient use of available bandwidth for both voice and data. Reduce WAN-access bandwidth requirements by converting high-bandwidth G.711 calls on your LAN into lower-bandwidth G.723 calls for WAN transport.

For added security, the SN5480 includes SIP-aware NAT and access controlled lists (ACLs) for maintaining secure communications when SIP traffic crosses the Enterprise edge.

In addition, routing capabilities include RIP v1/v2, virtual router redundancy protocol (VRRP), loopback interfaces as well as advanced techniques like policy based routing (PBR). Furthermore, QoS keeps malicious traffic from effecting bandwidth requirements of PBR-marked essential traffic and Downstream QoS ensures important voice and fax calls do not get bogged down by such resource hungry lower priority TCP traffic as FTP downloads.

For survivability, the SN5480 is equipped with a link status based routing function. This function, together with SIP registrar, enables survivable telephony services to be deployed between intra-office SIP clients in case there is a failure at the SIP provider.

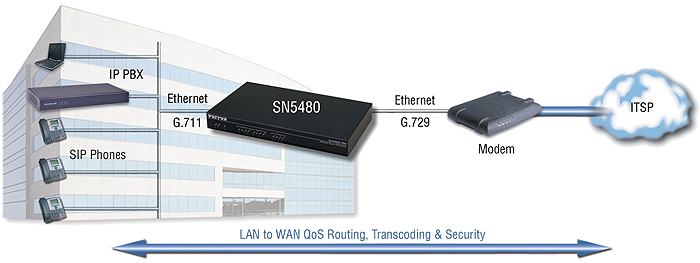

Applications

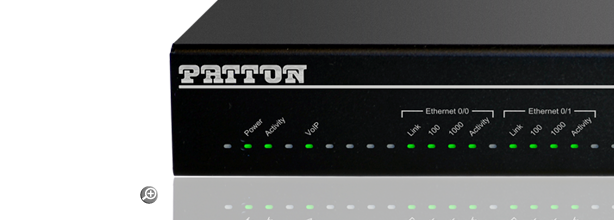

SmartNode 5480

Features

Trinity OS - optional, select this when SIP TLS/SRTP is required. Software Comparison
VoIP Transcoding—Capacity for up to 64 SIP-SIP calls with transcoding and up to 80 SIP Sessions without transcoding.
IP Routing—RIP v1/v2, VRRP, Policy Based Routing, Loopback/Virtual Interface, NAPT-capable edge router.
SIP Registrar - License is included in ALL eSBC products.
QoS and Security— Deliver secure, toll-quality voice communications with Patton’s DownStreamQoS™ with adaptive traffic management and shaping—plus secure voice-over-VPN with AES/DES strong encryption and extended ACL capabilities.
10/100/1000 Ethernet—One 10/100/1000 WAN Ethernet port and one 10/100/1000 LAN Ethernet port.
Proprietary Software—Utilizes proprietary SmartWare™ Software for added security.
Flexible mounting options—The device can be placed on a desktop or installed in a 19-inch rack using the optional rack ear kit (INS-KIT-RACKEARS-11/19).
Why SmartNode™?

Patton Quality
Made in the USA
Unrivalled Customer Support
FREE Support and Upgrades

Ordering

All SN5480 models include the following Software Feature Licenses:

SIP Registrar

IP Routing

RTP Transcoding (except /0P model)

SIP TLS (SRTP only on /32P & /64P models)

Please make sure you order the right amount of SIP sessions to come with the units. See optional sessions that can be loaded upon ordering.

Model #

Description

Availability

SN5481/32P/EUI

SmartNode eSBC, 32 transcoded SIP Sessions (SIP b2b UA) upgradeable only for non transcoded SIP calls (max. 80), 2x Gig Ethernet, external UI power (100�240)

General Availability

Accessories

Power Plugs & Cords
0805AUS (Qty: 1)	Australia/New Zealand Power Cord (C)
0805EUR (Qty: 1)	European Power Cord (IEC320 A)
0805IN (Qty: 1)	India/South Africa Power Cord (G)
0805SW (Qty: 1)	Switzerland Power Cord (L)
0805UK (Qty: 1)	UK Power Cord (IEC320 D)
0805US (Qty: 1)	US Power Cord (IEC320 K)
Additional Charge:
Misc
INS-KIT-1 (Qty: 1)	Conosle EIA-561 RJ45 to DB9 Adapter with 4 foot straight through CAT6 cable
Rack
INS-KIT-RACKEARS-11/19 (Qty: 1)	Rack mount ears for SN4970/71/70A, SN4980/81/80A, SN4991/90A, SN5400/80/81/90/91, SN4940/50/60, SN4660/70, SN463X, SN465X. Fits a 11.5 inch case into a 19 inch rack space.
Software License
SNSW-1B	SmartNode License for 1 additional SIP Call (SIP back-to-back calls using 2 SIP Legs)
TSW-VPN-TUN1	VPN License for 1 Tunnel of either OpenVPN, IPSec, L2TP. For all Trinity devices with software ver. 3.16.x onwards

SN5481/64P/EUI

SmartNode eSBC, 64 transcoded SIP Sessions (SIP b2b UA) upgradeable only for non transcoded SIP calls (max. 80), 2x Gig Ethernet, external UI power (100�240)

General Availability

Accessories

Power Plugs & Cords
0805AUS (Qty: 1)	Australia/New Zealand Power Cord (C)
0805EUR (Qty: 1)	European Power Cord (IEC320 A)
0805IN (Qty: 1)	India/South Africa Power Cord (G)
0805SW (Qty: 1)	Switzerland Power Cord (L)
0805UK (Qty: 1)	UK Power Cord (IEC320 D)
0805US (Qty: 1)	US Power Cord (IEC320 K)
Additional Charge:
Misc
INS-KIT-1 (Qty: 1)	Conosle EIA-561 RJ45 to DB9 Adapter with 4 foot straight through CAT6 cable
Rack
INS-KIT-RACKEARS-11/19 (Qty: 1)	Rack mount ears for SN4970/71/70A, SN4980/81/80A, SN4991/90A, SN5400/80/81/90/91, SN4940/50/60, SN4660/70, SN463X, SN465X. Fits a 11.5 inch case into a 19 inch rack space.
Software License
SNSW-1B	SmartNode License for 1 additional SIP Call (SIP back-to-back calls using 2 SIP Legs)
TSW-SIP-BODY-TUN	SIP Message Body Tunneling (For all SmartNodes running Software Version from 3.17.3)
TSW-VPN-TUN1	VPN License for 1 Tunnel of either OpenVPN, IPSec, L2TP. For all Trinity devices with software ver. 3.16.x onwards
