Enterprise Session Border Controller with 2 Ethernet ports supports up to 1000 SIP-to-SIP calls

Overview

Connect with confidence using the SmartNode 5600 Series eSBC with an integrated enterprise router to a SIP trunk or hosted PBX service. The SN5600 supports up to 1,000 SIP to SIP calls.

The SN5600 acts as eSBC, access router, and QoS CPE all in one device. It can also undertake network assessment and monitoring at the customer premise by using Patton Cloud network monitoring to prevent or reduce and resolve network and voice quality problems.

Applications
Network Integration
Whether used as an Enterprise Session Border Controller or IP router, the SmartNode 5600 provides excellent VoIP, IP QoS, and security features for seamless network integration.

Thanks to the built-in SIP back-to-back user agent, it resolves technology evolution related problems by normalizing SIP traffic from different vendor implementations. In addition, enhanced security is given to the enterprise thanks to various features protecting the LAN infrastructure. Number manipulation and call routing options come standard with every Patton eSBC.

Operated, managed, and administrated through the Patton Cloud, proactive notification of a customer network problem helps reduce service downtime and increase customer satisfaction.

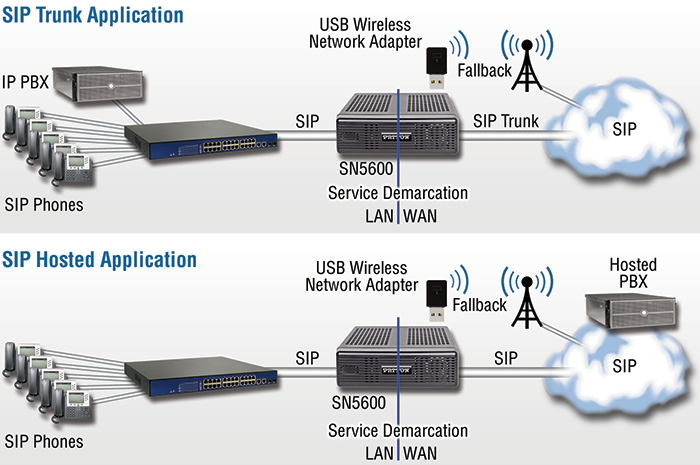

SmartNode 5600 applications

Features

VoIP Security - Network separation with SIP back-to-back UA, intrusion protection, DoS prevention, trust peer, signaling encryption (SIP-TLS), Stateful Firewall
Session Control - Dynamic SIP Session allocation for a high number of calls. SessionRouter allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, and much more.
SIP Normalization - SIP-to-SIP Interworking � Normalizing different vendor-specific SIP implementations or �dialects�. Demarcation point, separation between networks
Network Monitoring & Assessment - Network monitoring probe* for QoS measurements and proactive alerting to minimize problems. SLA assurance at demarcation point.
Load Balancing - Call load distribution across multiple network links.
IP Routing & Networking - IP Routing Protocol support; GRE, VRRP, RIP, L2TP, etc.
High Availability - Stateful call failover incl. proactive dead call detection. SBC redundancy and failover to secondary, virtual instances.
Easy Management & Provisioning - Patton Cloud Orchestrated, HTTPS zero-touch provisioning, TR-069, WebWizard, SNMP, command line interface. Automated mass provisioning with dual software image for efficient large-scale deployments.
Survivability - Access Link Redundancy through USB port, using 3G/4G Cellular Modem module (coming soon)
Proprietary Software - Utilizes proprietary Trinity� Software for added security.

Ordering

All SN5600 models include the following Software Feature Licenses:

SIP Registrar

IP Routing

SIP TLS

Model #

Description

Availability

SN5600/4B/EUI

SmartNode high performance eSBC, 4 SIP Calls no RTP transcoding (SIP b2b UA) upgradeable (max. 1`000), 2x Gig Ethernet, external UI power (100�240)

General Availability

Accessories

Power Plugs & Cords
0805AUS (Qty: 1)	Australia/New Zealand Power Cord (C)
0805EUR (Qty: 1)	European Power Cord (IEC320 A)
0805IN (Qty: 1)	India/South Africa Power Cord (G)
0805SW (Qty: 1)	Switzerland Power Cord (L)
0805UK (Qty: 1)	UK Power Cord (IEC320 D)
0805US (Qty: 1)	US Power Cord (IEC320 K)
Additional Charge:
Misc
INS-KIT-1 (Qty: 1)	Conosle EIA-561 RJ45 to DB9 Adapter with 4 foot straight through CAT6 cable
SVC-INTEG-MST (Qty: 1)	Professional Services for up to 3hrs of MS Teams integrations support
Software License
CBFL-MST	Cloud Based Feature License (12 month) for Microsoft Teams activation (includes Teams Activation, TLS, unlimited SRTP and Silk passthrough)
SNSW-1B	SmartNode License for 1 additional SIP Call (SIP back-to-back calls using 2 SIP Legs)
TSW-CELLMODEM	License enabling USB Cell Modem support on all Trinity devices with embedded USB port
TSW-MST	Permanent License for Microsoft Teams activation (includes Teams Activation, TLS, unlimited SRTP and Silk passthrough)
TSW-SIP-AUTO-SURVIVABILITY	Automated, Self Learning Survivability (Patent Pending)
TSW-SIP-FAILOVER	Seamless outbound SIP call hunting for all Trinity products
TSW-SRTP-CHAN1	SRTP Channel license (For one SIP-SIP call using SRTP. Supported on SN55xx, SN41xx, SN474x, SM56xx, vSN)
TSW-VPN-TUN1	VPN License for 1 Tunnel of either OpenVPN, IPSec, L2TP. For all Trinity devices with software ver. 3.16.x onwards
