Adding Real-Time Communications to Industrial Networks

The Problem
Legacy Serial and TDM Voice communication networks offered deterministic network performance supporting real-time or near real-time applications. Ethernet by contrast interconnects everything, shares bandwidth and is not naturally deterministic. And everything is converging over Ethernet/IP. Certain types of PLC and Industrial Control traffic are real-time. All Voice or VoIP traffic is real-time. Adding voice to Industrial Ethernets can be problematic without the proper tool-sets to manage QoS for real-time network performance.

The Picture

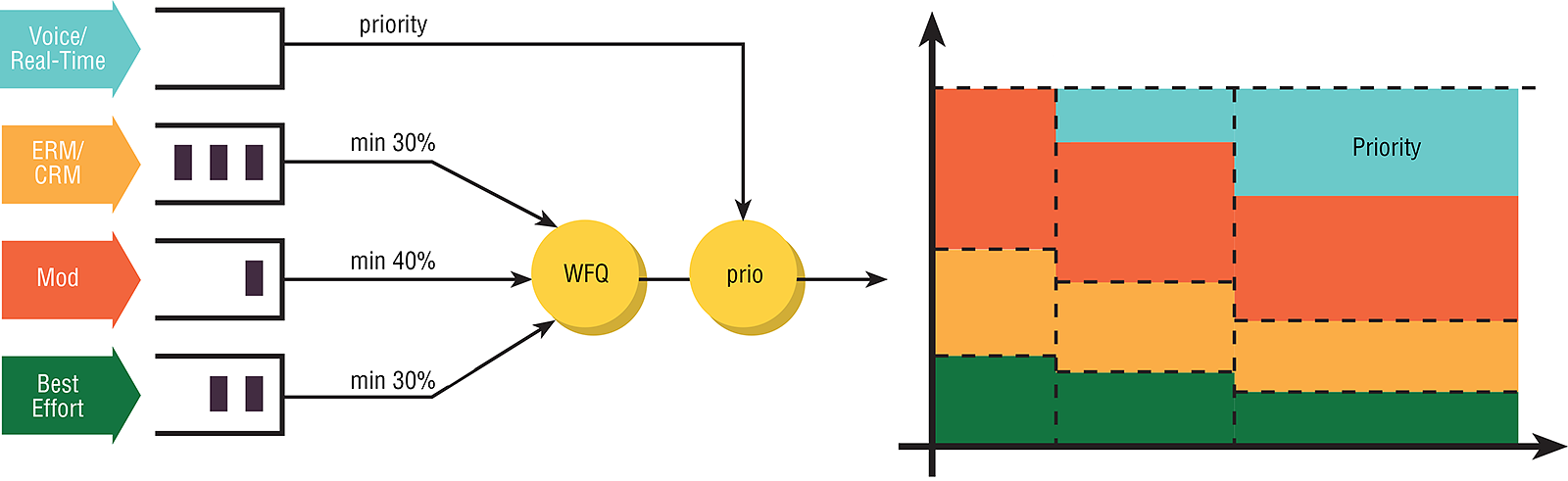

QoS Sets traffic priorities across the network, supports dedicated bandwidth on a per-flow scheduled basis, shapes network traffic to predictable levels, improves or eliminates loss characteristics and reduces network congestion. This enables VoIP and other real-time data to get where it needs to quickly. Weighted fair queuing (WFQ) is a technique which assures a given minimum amount bandwidth for a certain traffic class. Shaping ensures that each traffic-class will get a specific slice of bandwidth. Burst-tolerant shaping prevents data loss by assigning additional buffers to bursty traffic classes.

The Solution

Patton SmartNodes enable the connection of either IP or Legacy voice end points and interconnects to Industrial, Security and Pro-AV Ethernets
SmartNode Quality of Service (QoS) tools can be used at points in the network to control the behavior of real-time and non-real-time data
SmartNodes control the behavior of different network services by differentiating between real-time and non-real-time traffic
SmartNode QoS tools ensure real-time traffic is prioritized delivering voice, alarms and emergency dispatches in real-time
The industrial network architect can deploy Patton SmartNodes and implement voice over their industrial networks with QoS to provide end-to-end quality for data, voice, and video services

Learn About VoIP and the Patton SmartNodes

The Details
Ethernet is now the preferred method for all industrial communications; replacing serial networks built on current loop, RS-232 and RS-485. These older networks were comprised of many small networks or segregated network segments enabling deterministic network performance and supporting real-time or near real-time applications.

Ethernet by contrast interconnects everything, shares bandwidth and is not naturally deterministic. Therefore management and control over the data is needed to ensure networks services are working properly. Real-time traffic is sensitive to delay and data loss.

While much of the data traffic in an Industrial Ethernet network is non-real-time, some types of PLC and Video traffic are real-time in nature. Voice traffic or VoIP is real-time and adding can be problematic for the voice and other services without the proper toolsets to manage QoS.

Patton SmartNodes enable the connection of either IP or Legacy devices, including voice end points and interconnects to Industrial Ethernets. SmartNode Quality of Service (QoS) tools can be used at points in the network to control the behavior of real-time and non-real-time data. SmartNode QoS features classify, prioritize and shape traffic across the industrial network.

SmartNodes control the behavior of different network services by differentiating between real-time and non-real-time traffic. A new job files for PLC or query data from a weigh scales is usually not time sensitive. On the other hand, paging, hotline phones, call boxes, alarm alerts, emergency dispatching, and VoIP telephone calls are time sensitive with consequences ranging from poor voice quality to late or not arriving alarm or emergency dispatches.

Network architect can implement VoIP their industrial networks with SmartNode QoS to provide end-to-end quality for data, voice, and video services.
