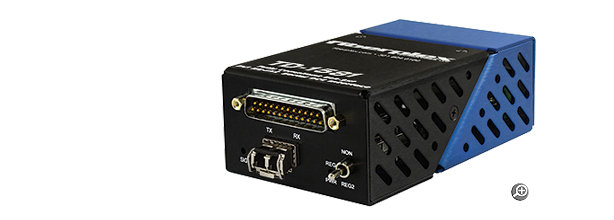

FiberPlex TD-1580 Serial to Fiber Converter | Industrial High-speed EIA-530/RS-422 Isolator & Modem

Overview
The TD-1580 (to DTE) and TD-1581 (to DCE) pair together to form a powerful balanced serial data transport solution. The DB-25 connectors are pinned out to directly support an EIA-530 serial link. However due to the transparency and flexibility of the design, the TD-1580/81 can be used as 6x4 independent 6 Mbps RS-422 channels and 2x1 independent 256 kbps RS-232 channels.

By using a technology unique to FiberPlex products we are able to use all the clock, data and control channels of the standard interface completely independently of one another. This provides the ability to have (4) bi-directional RS-422 serial with (2) unidirectional RS-422 and (1) bi-directional RS-232 with (1) uni-directional RS-232, or even independently as (6) RS-422 in one direction and (4) in the other [6x4] and (2) RS-232 in one direction and (1) in the other [2x1]. This incredibly versatile unit can be used in a myriad of serial data applications including: SCADA (supervisory control and data acquisition), telecommunications, facility automation and control, even DMX lighting control.

Your once limited serial links can not only be consolidated but extended to over 20 Km on a single fiber pair. SCADA (supervisory control and data acquisition), Telecommunications, Facility Automation and Control, even DMX Lighting control applications can all benefit from the TD-1580/81.

For more advanced systems, a ‘Regeneration’ switch on the TD-1581 allows users to toggle between synchronous applications that require Send Timing (ST) and asynchronous or synchronous applications that require Terminal Timing (TT).

Applications
Applications include SCADA, Oil and Gas, Home & Facility Automation, Telecommunications and Industrial Controls. Due to the flexible nature of SFP modules, the SFP version of this unit can accommodate a variety of singlemode, multimode, BiDi or CWDM optical modules providing maximum flexibility.

Features

• Supports RS-530, 6x4 RS-422 and 1x2 RS-232
• EIA-530 and RS-422 channels support data rates from DC to 6.144 Mbps
• Multimode extension of up to 1.2 miles (2 km)
• Singlemode extension up to 12.4 miles (20 km) or more
• Regeneration switch on the TD-1581 allows users to toggle between sync applications requiring send timing (ST) and async/sync applications requiring terminal timing (TT)
• Compatible with MIL-STD-188-114A balanced type 1 and type 2, FED STD 1030A
• Can be used for up to 6 universes of DMX lighting control
• Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
• Power Adapter Included

Ordering

# Model # Description Availability 1 TD-1580-C Fully Compatible EIA-530 / 6x4 RS-422 Serial Interface with 1�2 RS-232, DMX, DTE, TD Package, SFP Cage Only, Includes AC �Power Adapter General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 1) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,BRAZIL Power Supply PS-03671H1-002   (Qty: 1) AC/DC,UNIV IN,12V,2A,WALL MNT,40C Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC �Power Adapter SFP SFP-OC SFP optical modules for standard digital communications Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 2 TD-1580-L22 Fully Compatible EIA-530 / 6x4 RS-422 Serial Interface with 1�2 RS-232, DMX, DTE, TD Package, 1310nm Multimode, LC optics, Includes AC �Power Adapter General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 1) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,BRAZIL Power Supply PS-03671H1-002   (Qty: 1) AC/DC,UNIV IN,12V,2A,WALL MNT,40C Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC �Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 3 TD-1580-L5B Fully Compatible EIA-530 / 6x4 RS-422 Serial Interface with 1�2 RS-232, DMX, DTE, TD Package, 1300nm Singlemode, LC optics, Includes AC �Power Adapter General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 1) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,BRAZIL Power Supply PS-03671H1-002   (Qty: 1) AC/DC,UNIV IN,12V,2A,WALL MNT,40C Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC �Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 4 TD-1581-C Fully Compatible EIA-530 / 6x4 RS-422 Serial Interface with 1�2 RS-232, DMX, DCE, TD Package, SFP Cage Only, Includes AC �Power Adapter General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 1) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,BRAZIL Power Supply PS-03671H1-002   (Qty: 1) AC/DC,UNIV IN,12V,2A,WALL MNT,40C Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC �Power Adapter SFP SFP-OC SFP optical modules for standard digital communications Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 5 TD-1581-L22 Fully Compatible EIA-530 / 6x4 RS-422 Serial Interface with 1�2 RS-232, DMX, DCE, TD Package, 1310nm Multimode, LC optics, Includes AC �Power Adapter General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 1) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,BRAZIL Power Supply PS-03671H1-002   (Qty: 1) AC/DC,UNIV IN,12V,2A,WALL MNT,40C Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC �Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 6 TD-1581-L5B Fully Compatible EIA-530 / 6x4 RS-422 Serial Interface with 1�2 RS-232, DMX, DCE, TD Package, 1300nm Singlemode, LC optics, Includes AC �Power Adapter General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 1) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 1) CON,POWER,PLUG,MEGA MJSW,BRAZIL Power Supply PS-03671H1-002   (Qty: 1) AC/DC,UNIV IN,12V,2A,WALL MNT,40C Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC �Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules
