JITC Certified non-TSG SIP Phones
Tone Commander 7810 SIP Phone, AS-SIP, 10 Lines with PoE.



The Tone Commander IP Phone 7810 is a feature-rich, executive-level desk phone designed for power users. The phone can be powered over Ethernet, or with an optional power supply. The 7810 incorporates TLS and SRTP encryption and supports both IPv4 and IPv6 transport.


Overview
The Tone Commander IP Phone 7810 is a feature-rich, executive-level desk phone designed for government, military, and commercial power users. The phone can be powered over Ethernet, or with an included power supply. An optional 8030x expansion module increases the number of features and speed dial keys to 40, offering rapid access to the numbers and features you use most.

The 7810 incorporates TLS and SRTP encryption and supports both IPv4 and IPv6 transport.

Department of Defense (DoD) Unified Capabilities (UC) Approved Products List (APL) approval has been granted for the Tone Commander 78xx, 4104, and 4101 Release xx.04.21, Tracking Number (TN) 1310601, as a voice only, non-secure Assured Services Session Initiation Protocol (AS-SIP) End Instrument (AEI).


8030X Button Expansion Module



This option adds 30 multifunction keys to the IP Phone 7810. The additional multifunction keys can be set up as Call Appearance keys, speed dial keys, Direct Station Select keys, or Feature Activator keys. All multifunction keys have both red and green lamp indicators for easy status viewing. This module is ideal for answering positions and high-density key applications.



A close-up of a telephone  Description automatically generated



Only one 8030X per telephone is supported.

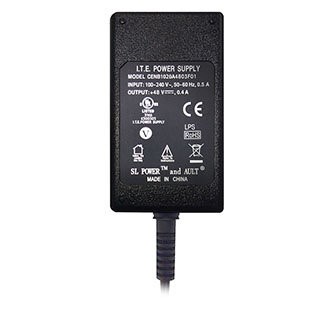

Local Direct Power Option -PWR1



The –PWR1 Power Supply option provides local power for 7810PoE-TSGA and 7810PoE-TSGB models when Power over Ethernet is not available.



A close-up of a power supply  Description automatically generated





Features
  • Highly Secure - Secure Real-time Transport Protocol (SRTP), Transport Layer Security (TLS), Hypertext Transfer Protocol Secure (HTTPS) and digitally signed tamper-proof firmware.
  • SIP and AS-SIP - IETF RFC 3261 compliant SIP and Certified Assured Services SIP End Instrument (AEI) with MLPP (Multilevel Precedence and Preemption).
  • Easy Ethernet Connectivity - Switched 10/100 ethernet port enable PC connectivity. Power over Ethernet & local power according to 802.3af.
  • Large Graphic Display - High resolution 320 x 240 pixel LCD.
  • Multi-Function Keys - Ten (10) desi-less programmable multi-function line or feature keys. �Desi-less means designations are available on the LCD for customization. Optional 30-button Expansion Module.
  • Easy Install - Desk or wall mount enclosure with dedicated headset port with headset control key. Automated provisioning.
  • Provisioning - Mass secure provisioning using HTTPS.
  • Fully Compliant - Listed on the DoD Approved Products List (APL). IPv4/IPv6 Dual Stack with AES-128 secure RTP voice encryption and Secure TLS signaling encryption. CNSS 5001 compliant.
  • Handset and Headset Options *NEW* - Standard and Push-to-Talk Handset Options available. An extra headset port allows use of standard compatible headsets.
  • Made in USA - Designed, developed, and fully manufactured in the USA ensuring source and origin security.

Ordering
# Model # Description Availability
1 1010293701 Tone Commander, Standard 7810 IP Phone, AS-SIP, 10 Lines, PoE, Switched PC Port. US Made. General Availability

 Accessories

2 1010293801 Tone Commander, Standard 7810 IP Phone with Push-to-Talk Handset, AS-SIP, 10 Lines, PoE, Switched PC Port. US Made. General Availability

 Accessories

3 1010303901 Tone Commander 8030X, 30-Button Expansion Module. US Made. Pre-Order Available
