VoIP IAD | Multiport Enterprise VoIP IAD

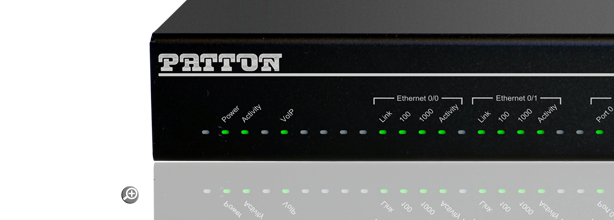

SmartNode 4990A IPv6-Ready T1/E1/PRI VoIP IAD w/Fiber, G.SHDSL, EFM, X.21 or ADSL WAN



Now service providers can reach more enterprise subscribers with All-IP services. The SmartNode 4990 VoIP Integrated Access Device (IAD) connects any existing telephony system to SIP trunks and the PSTN.
Overview
Cloud Enabled
The SmartNode™ 4990A VoIP Integrated Access Device for 15-to-120 VoIP calls lets enterprises graduate to All-IP at their own pace. The one-box solution includes a built-in G.SHDSL-EFM/ATM, VDSL/ADSL, fiber, or X.21 WAN interface for broadband access. Legacy telephony interfaces enable SIP trunk providers to offer their All-IP services to businesses that want to keep an existing PBX solution, while providing PSTN connectivity for voice and data survivability.


The integrated WAN-access options reduce CPE costs, simplify network architecture, and accelerate service deployment.  A SIP back-to-back user agent provides SIP normalization that ensures interoperability between any customer PBX and any provider softswitch on the market. Built on a platform that is ready to support IPv6, the SN4990A provides secure TLS and SRTP encryption* while supporting all the industry-standard CODECs for toll-quality voice on every call.

The Unified Communications Agent™ (UCA) provides any-to-any multi-path switching (simultaneous SIP, ISDN, and POTS calls with routing and conversion between TDM/PSTN and IP/Ethernet networks—plus T.38 and SuperG3 FAX). VoIP-over-VPN technology (with voice encryption) provides secure voice and data via IPsec with AES/DES strong encryption and automated keying via Internet Key Exchange (IKE) and OpenVPN*. Advanced call-router functionality includes least-cost call routing with flexible dialed-number plan support.

The SmartNode survivability suite combines PSTN fallback, SIP Registrar,  IP-link redundancy and active SIP server reachability detection to ensure business continuity in case the IP network fails, while Patton’s DownStreamQoS™ delivers clear, uninterrupted voice-and-data communication. Patton’s unique high-precision clock delivers first-line IP-telephony service in demanding ISDN and DECT environments—with reliable FAX and modem performance.

Strong number-portability delivers a smooth transition to VoIP by accepting incoming calls from the PSTN throughout the number-porting process. Session border router capabilities include optional transcoding for up to 64 channels. Reduce WAN-access bandwidth requirements by converting high-bandwidth G.711 calls on the enterprise LAN into lower-bandwidth G.729 calls for WAN transport.

The SN4990A delivers secure, prioritized unified communications with one to four T1/E1/PRI and two 10/100/1000 Ethernet ports—plus broadband access—in a single box.  An optional third 10/100 Ethernet port may connect to an out-of-band IP management network, or—for enhanced survivability—provide a redundant Ethernet connection to the (same or alternate) service provider.


Applications
General Applications Overview
  • IP-enabled ISDN PBX
  • Survivability & PSTN fallback
  • QoS and IP routing
SmartNode 4990 app 1

Migration to All-IP with Backup Link for Fallback
  • IP PBX coexistent with legacy PBX
  • SIP service monitoring & failover to PSTN
SmartNode 4990 app 2

Migration to All-IP with Fallback to Alternate Service Provider
  • IP PBX coexistent with legacy PBX
  • Failover to secondary/alternate service provider over alternate WAN link

SmartNode 4990 app 3

Migration to All-IP with Local Management & Monitoring
  • ISDN to All-IP migration
  • IP routing with QoS
  • Separate Ethernet port for local monitoring and management
SmartNode 4990 app 4

Migration to All-IP with Out-of-band Management
  • Separate Ethernet port for remote, out-of-band monitoring and management
  • ISDN to All-IP migration
  • IP routing with QoS
SmartNode 4990 app 5


Features
  • Trinity OS - Advanced feature set including SIP TLS/SRTP, IPv6 ready, and Cloud capable Software Comparison
  • 15 to 120 VoIP calls—with up to four T1/E1/PRI ports and dual Gigabit Ethernet ports.
  • Survivability—PSTN failover using ISDN lines or alternate WAN link. SIP server health detection with instant failover call routing. SIP registrar for local calling during failover.
  • QoS and Security—Deliver secure, toll-quality voice communications with Patton’s DownStreamQoS™, Fraud prevention, secure voice-over-VPN with IPsec, OpenVPN.
  • WAN Access—Fiber SFP, G.SHDSL-EFM/ATM, Serial X.21, Fast Ethernet or VDSL/ADSL WAN interface.
  • SIP Interop and Normalization—SIP interop with major IP PBX, softswitch and VoIP service providers. Over 100,000 SmartNode deployments worldwide. ISDN/PSTN compliance in nearly every country.
  • High Precision Clock—Delivers DECT PBX interoperability with reliable fax performance.
  • VoIP Transcoding Option—Up to 60 channels for WAN bandwidth optimization.
  • Transparent Telephony Features—Complex number manipulation and mapping for seamless integration with existing infrastructures, CLIP, CLIR, hold, transfer and much more.
  • Flexible Mounting Options—The device can be placed on a desktop or installed in a 19-inch rack using the optional rack ear kit (INS-KIT-RACKEARS-11/19).
  • Supported by SmartNode™ Redirection Service: A free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers (Learn More).
  • Why SmartNode?
    • Patton Quality
    • Made in the USA
    • Unrivaled Customer Support
    • FREE Tech Support and Upgrades


Ordering

Product Change Notice:
Due to the fast evolvement of VoIP, routing, and SBC functionalities being developed by Patton for the SmartNode product line, more and more system memory is being required. To cope with the increased memory needs, accommodating features being made available in the future, the hardware of SmartNode products need to go along, requiring being upgraded as well. All new hardware (SN4990A) support Trinity Software only.
See the Product Change Notice for more details.
Current SKU Replacement SKU(s)

or Enter Manually



# Model # Description Availability
1 SN4990A/1E15V30HP2G/EUI SmartNode IAD-eSBC, 1 E1/T1 PRI, Trinity Only, 15 VoIP Calls upgradeable to 30, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), High Precision 5ppm Clock, G.SHDSL.bis-EFM (4-Wire), SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

2 SN4990A/1E30VHP2G/EUI SmartNode IAD-eSBC, 1 E1/T1 PRI, Trinity Only, 30 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), High Precision 5ppm Clock, G.SHDSL.bis-EFM (4-Wire), SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

3 SN4990A/1E30VHPAVA/EUI SmartNode IAD-eSBC, 1 E1/T1 PRI, Trinity Only, 30 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), High Precision 5ppm Clock, VDSL/ADSL-Annex A/L/M, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

4 SN4990A/1E30VHPAVB/EUI SmartNode IAD-eSBC, 1 E1/T1 PRI, Trinity Only, 30 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), High Precision 5ppm Clock, VDSL/ADSL-Annex B/J, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

5 SN4990A/1E30VHPI/EUI SmartNode IAD-eSBC, 1 E1/T1 PRI, Trinity Only, 30 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), High Precision 5ppm Clock, SIP-TLS, SRTP, 2x Gig Ethernet and 1x FastEthernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

6 SN4990A/4E30V120RHP4G/EUI SmartNode IAD-eSBC, 4 E1/T1 PRI, Trinity Only, 30 VoIP Calls upgradeable to 120, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, G.SHDSL.bis-EFM (8-Wire), SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

7 SN4990A/4E30V60RHP2G/EUI SmartNode IAD-eSBC, 4 E1/T1 PRI, Trinity Only, 30 VoIP Calls upgradeable to 60, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, G.SHDSL.bis-EFM (4-Wire), SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

8 SN4990A/4E30V60RHP4G/EUI SmartNode IAD-eSBC, 4 E1/T1 PRI, Trinity Only, 30 VoIP Calls upgradeable to 60, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, G.SHDSL.bis-EFM (8-Wire), SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

9 SN4990A/4E30V60RHPAVA/EUI SmartNode IAD-eSBC, 4 E1/T1 PRI, Trinity Only, 30 VoIP Calls upgradeable to 60, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, VDSL/ADSL-Annex A/L/M, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

10 SN4990A/4E30V60RHPAVB/EUI SmartNode IAD-eSBC, 4 E1/T1 PRI, Trinity Only, 30 VoIP Calls upgradeable to 60, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, VDSL/ADSL-Annex B/J, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

11 SN4990A/4E60VRHP2G/EUI SmartNode IAD-eSBC, 4 E1/T1 PRI, Trinity Only, 60 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, G.SHDSL.bis-EFM (4-Wire), SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

12 SN4990A/4E60VRHP4G/EUI SmartNode IAD-eSBC, 4 E1/T1 PRI, Trinity Only, 60 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, G.SHDSL.bis-EFM (8-Wire), SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

13 SN4990A/4E60VRHPAVA/EUI SmartNode IAD-eSBC, 4 E1/T1 PRI, Trinity Only, 60 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, VDSL/ADSL-Annex A/L/M, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

14 SN4990A/4E60VRHPAVB/EUI SmartNode IAD-eSBC, 4 E1/T1 PRI, Trinity Only, 60 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, VDSL/ADSL-Annex B/J, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories
