SIP Speakers and Intercoms

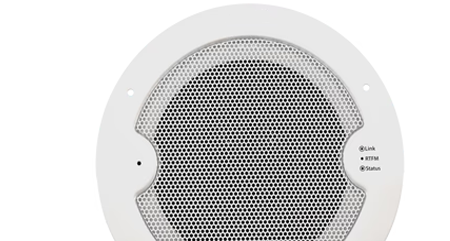

SmartNode SN340 VoIP/SIP POE Powered Speaker System



This next-generation VoIP/SIP speaker is used for public address, emergency notification or intercoms. It connects directly to the local LAN with a single Ethernet cable connection and gets power exclusively using Power-Over-Ethernet.


Overview



Patton’s SN340 is a POE-Powered VoIP/SIP Speaker for indoor use used for public address, emergency notification or intercoms applications.   The speaker connects into existing local area networks with a single Ethernet cable connection and gets power exclusively from the ethernet switch with either PoE 802.3af or POE+ 802.3at).



This speaker is a companion to Patton’s SN400 Series VoIP/SIP Public Address Paging Server but can be used with any SIP based IP-PBX servers.   It supports simultaneous SIP and multicast, so it can play multicast messages independent of the SIP environment.  It can also receive pages directly from SIP Phones and other devices that are multicast capable.



The speaker supports up to 10 multicast paging groups, allows paging prioritization, supports user-uploadable ring and alert tones and includes a loud night ringer function.



The SN340 has an integrated microphone which enables two-way conversations. A call can be initiated for either a 1-way page or a two-way conversation.  When used together with a Remote Call Button, calls can also be initiated from the room using the microphone integrated into the speaker.



For larger rooms the speaker can connect to and drive external analog speakers providing greater coverage and enabling easy SIP migration to rooms with existing analog speakers already installed.



Superior sound quality is achieved by measuring ambient noise in the area and adjusting its volume for ambient noise compensation.



The device is highly secure, providing security codes to prevent unwanted SIP calls from reaching the speaker and it supports VoIP encryption using TLS 1.2 and SRTP.  It is also highly configurable including configurable Echo cancellation,  adaptive half duplex audio is also configurable for VOX (Voice-Operated) settings.



The SN340 can be auto-provisioned using HTTP, HTTPS, or TFTP and can also be configured or re-configured via HTTPS connection to its intuitive web-GUI.





MOUTING OPTIONS:



A Ceiling Mount Bracket made of electrogalvanized steel enables 24-inch-wide ceiling tile mounting as pictured below.

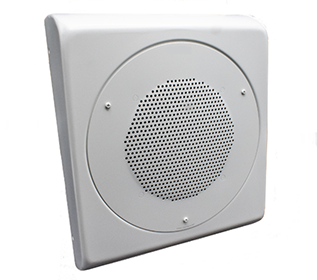

A Wall Mount kit made of electrogalvanized steel with top and bottom cable channels is available for easy wall mounting.




Kits for ceiling and wall mounting are sold separately.





Features
  • POE Powered SIP Speaker - Power-over-Ethernet (PoE 802.3af and POE+ 802.3at) and Voice-over-IP (VoIP) indoor speaker.
  • SIP Multicast - The speaker plays multicast messages, independent of the SIP environment and supports simultaneous SIP and multicast.
  • Direct Paging - The speaker can receive pages directly from SIP Phones and other devices that are multicast capable.
  • Integrated Microphone - When enabled and integrated microphone enables two-way conversations. A call can be initiated for either a either a 1-way page or conversation.
  • Emergency Call Integration - When used with the Remote Call Button, calls can be initiated from the room speaker.
  • Cascades to Analog Speakers - The speaker can connect to and drive external analog speakers for larger rooms requiring greater coverage.
  • Superior Sound Quality - The speaker persistently measures ambient noise in the area and adjust it�s volume of the speaker using ambient noise compensation.
  • Paging Controls - Supports up to 10 multicast paging groups. Allows Paging prioritization, supports user-uploadable ring and alert tones and includes a loud night ringer function.
  • Secure - Support for security codes to prevent unwanted SIP calls from reaching the speaker. Supports TLS 1.2 and SRTP enhanced security for IP Endpoints in on-premises or cloud-based environments.
  • Interoperable - Companion to Patton�s SN400 Series VoIP/SIP Public Address Paging Server and Interoperates with SIP based IP-PBX servers.
  • Highly Configurable - Echo cancellation settings are configurable. Adaptive half duplex audio is configurable for VOX (Voice-Operated) settings.
  • Automated Provisioning - Auto-provisioning using HTTP, HTTPS, or TFTP with HTTPS configuration using an intuitive web-GUI.
  • Flexible Mounting - It�s small form factor and slim depth means the speaker can be mounted almost anywhere. Mounting kits for ceiling and wall mounting are available separately.

Ordering
# Model # Description Availability
1 SN340/CMK Ceiling Speaker Tile Mounting Kit. Pre-Order Available
2 SN340/POE VoIP/SIP Speaker. POE Powered. Pre-Order Available
3 SN340/WME Wall Mounting Enclosure and Kit. Pre-Order Available
