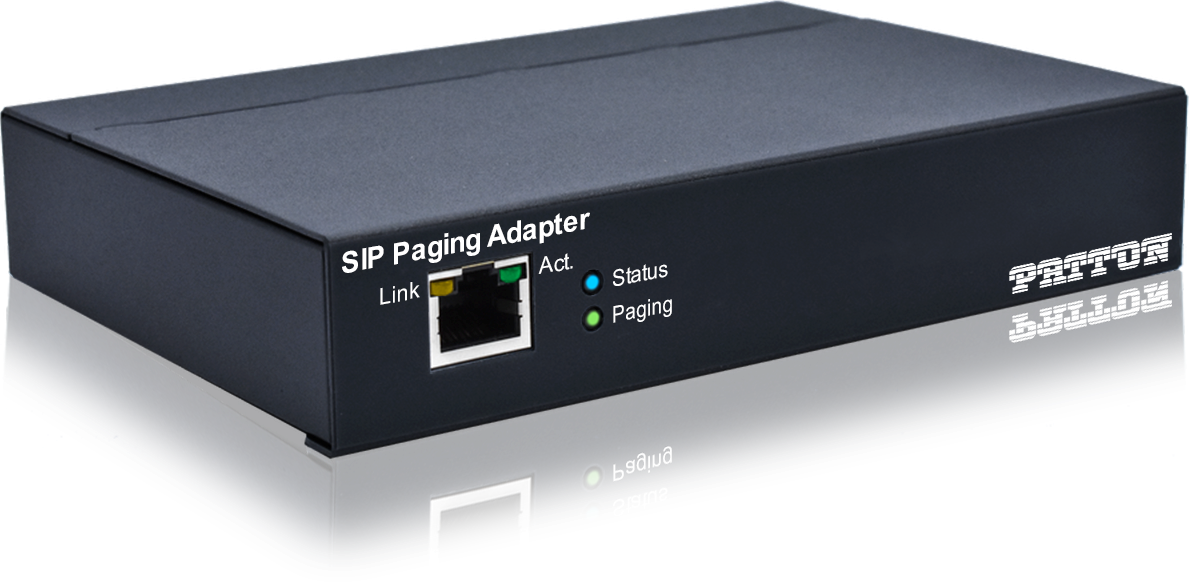

SIP Paging Systems SmartNode SN400 VoIP/SIP Public Address Paging Server
Multi-Zone SIP Paging Server. Access up to 100 zones for SIP-based paging and bell scheduling for VoIP phone systems.
Overview
The SIP Paging Server with Bell Scheduler enables users, through a single SIP extension, to access up to 100 zones
for paging and bell scheduling for VoIP phone systems.
The SIP Paging Server has a built-in bell scheduler that
enables, through a secure web interface, scheduled bells
and prerecorded messages to be sent to different multicast
zones as well as to legacy analog paging systems.
Perfect for schools, universities, manufacturing, or any
environment where scheduled bells and zone paging are
paramount.
Patton’s SIP enabled VoIP products are compatible with the majority of Patton VoIP products including SBCs, Gateways, as well as most third party on-premise or cloud-based phone systems.
Applications

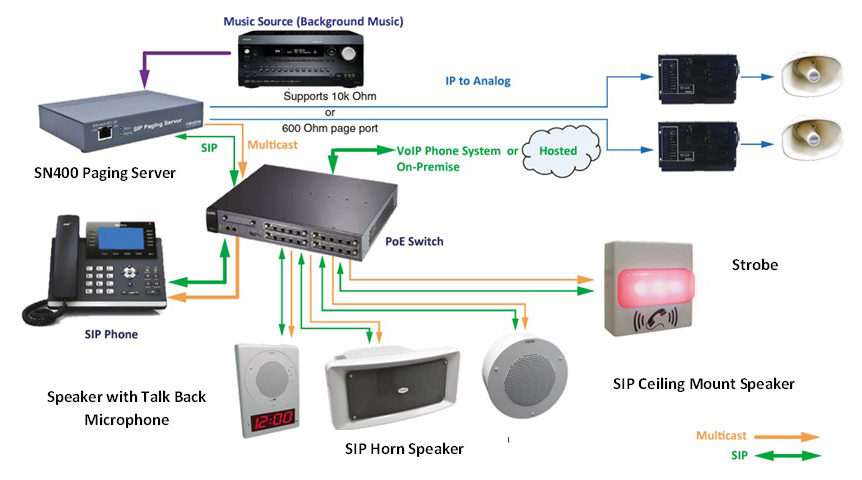

Leveraging Ethernet and POE Connectivity the SIP Paging Server delivers background music and/or paging from SIP Phones or IP PBX systems to Analog and/or SIP speakers.
Features
VoIP / SIP-Based Public Address - Paging can be done with a single SIP extension. Can be integrated with any SIP based phone system or PBX.
Be Safe, Productive & Punctual - Safe environments allow people to learn, create and work. Perfect for schools, universities, manufacturing where life safety, scheduled bells and zoned paging are essential.
Complete Solution - Handles emergency notification as well as daily paging & bell scheduling.
Multi-Zoned Paging - Access up to 100 zones with DTMF control of zone selection. Voice prompting and password-controlled zones.
Bell and Event Scheduler - Built-in scheduler enables web GUI control for scheduled bells and/or prerecorded messages delivered to different zones. Schedule up to 250 events.
Bell Files and Messages - Supports user-uploadable ring and alert tones, page-group, up to 25 unique user uploadable bell files and up to 25 stored messages. Can be played through paging groups with paging prioritization.
Migration is Easy - Integrates with legacy analog paging speakers and systems.
IP Phone Integration - Can send multicast paging to SIP phones (Poly)
Background Music Plus - Line-In can deliver background music. Supports Line-out, NTP-based internal clock, Audio controlled relay/remote amplifier and DTMF pass-through.
Highly Secure - Supports TLS and SRTP enhanced security and encryption for IP Endpoints.
Provisioning and Management - Auto provisioning via HTTPS, HTTP or TFTP. HTTPS or HTTP web-based configuration. Support for Cisco SRST resiliency. Configurable event generation for device health and status monitoring.
Interoperable - Works well with third party on-premises or cloud-based phone systems and Patton VoIP products including SBCs, Gateways.
Ordering
#
Model #
Description
Availability
1
SN400/POE/DC
VoIP/SIP Public Address Paging Server.� POE or DC Powered.
VoIP / SIP-Based Public Address - Paging can be done with a single SIP extension. Can be integrated with any SIP based phone system or PBX.
Be Safe, Productive & Punctual - Safe environments allow people to learn, create and work. Perfect for schools, universities, manufacturing where life safety, scheduled bells and zoned paging are essential.
Complete Solution - Handles emergency notification as well as daily paging & bell scheduling.
Multi-Zoned Paging - Access up to 100 zones with DTMF control of zone selection. Voice prompting and password-controlled zones.
Bell and Event Scheduler - Built-in scheduler enables web GUI control for scheduled bells and/or prerecorded messages delivered to different zones. Schedule up to 250 events.
Bell Files and Messages - Supports user-uploadable ring and alert tones, page-group, up to 25 unique user uploadable bell files and up to 25 stored messages. Can be played through paging groups with paging prioritization.
Migration is Easy - Integrates with legacy analog paging speakers and systems.
IP Phone Integration - Can send multicast paging to SIP phones (Poly)
Background Music Plus - Line-In can deliver background music. Supports Line-out, NTP-based internal clock, Audio controlled relay/remote amplifier and DTMF pass-through.
Highly Secure - Supports TLS and SRTP enhanced security and encryption for IP Endpoints.
Provisioning and Management - Auto provisioning via HTTPS, HTTP or TFTP. HTTPS or HTTP web-based configuration. Support for Cisco SRST resiliency. Configurable event generation for device health and status monitoring.
Interoperable - Works well with third party on-premises or cloud-based phone systems and Patton VoIP products including SBCs, Gateways.
The SIP Paging Server with Bell Scheduler enables users, through a single SIP extension, to access up to 100 zones
for paging and bell scheduling for VoIP phone systems.
The SIP Paging Server has a built-in bell scheduler that
enables, through a secure web interface, scheduled bells
and prerecorded messages to be sent to different multicast
zones as well as to legacy analog paging systems.
Perfect for schools, universities, manufacturing, or any
environment where scheduled bells and zone paging are
paramount.
Patton’s SIP enabled VoIP products are compatible with the majority of Patton VoIP products including SBCs, Gateways, as well as most third party on-premise or cloud-based phone systems.
Leveraging Ethernet and POE Connectivity the SIP Paging Server delivers background music and/or paging from SIP Phones or IP PBX systems to Analog and/or SIP speakers.
Please register to view this information. It only takes a few seconds.
#
Model #
Description
Availability
1
SN400/POE/DC
VoIP/SIP Public Address Paging Server.� POE or DC Powered.
Pre-Order Available
