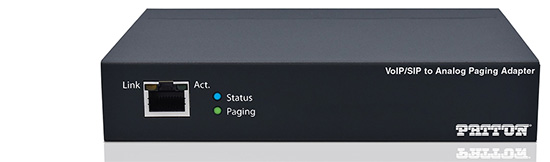

SIP Paging Systems SmartNode SN420 VoIP/SIP to Analog Paging Adapter
Easy connect legacy Analog Paging Amplifiers and Speakers to SIP with this Analog Paging Adapter. This Adapter is frequently used with Patton�s SN400 VoIP/SIP Public Address Paging Server
Overview
The SN420 SIP to Analog Paging Adapter is a specialized VoIP gateway that interfaces between SIP and analog paging systems enabling SIP Multicast-based audio sources. The unit is configurable to support two separate SIP extensions. SIP extension one (1) passes audio through to the analog output spoken from the caller's handset. SIP extension two (2) plays a bell audio that can be used as a night ringer when configured in a night ring group.

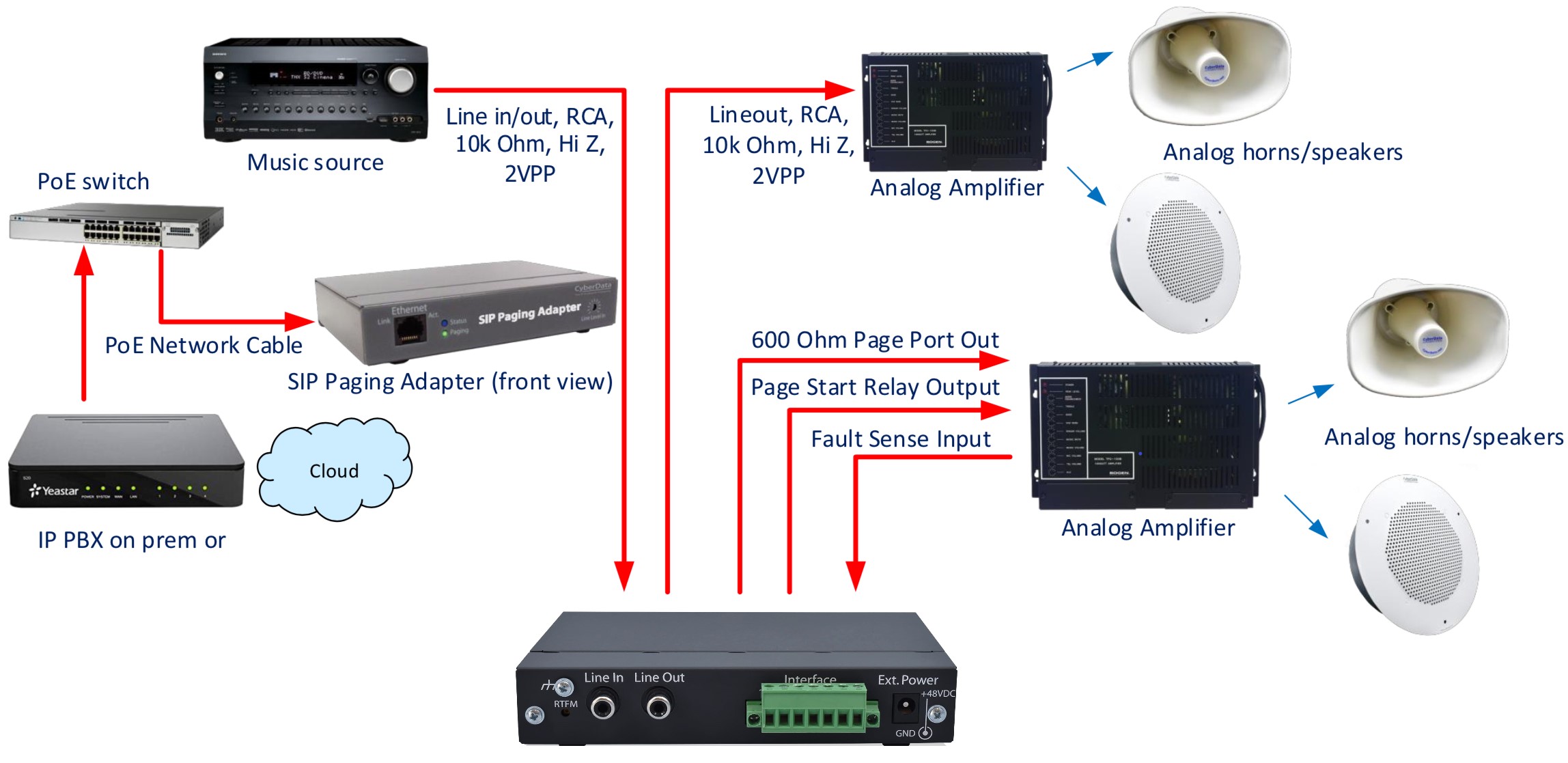

The unit includes a “Line In” RCA 10K Ohm Hi-Z input for connecting the device to audio sources, such as a music source. It also has an RCA line-out (10K Ohm Hi-Z) port for connecting to an external audio amplifier. The device is also equipped with a Fault Sense Input, a 600-Ohm Audio Output (Positive or Negative) and Page Start relay contact.
The SN420 can be powered using the Ethernet POE port, natively suppled 48VDC power or from AC wall mount transformer. This device has been tested as interoperable with all major brands of analog amplifiers on the market.
Applications
The SN420 is designed to inter-connect with most Analog based Amplifiers for Paging. As a gateway, the product allows integration of SIP based on-premise or cloud phone systems with legacy Paging and Notification systems.
Features
SIP to Analog Paging Gateway - Re-use existing Analog Amplifiers and Speakers with SIP/VoIP PBX Systems for Public Address.
Be Safe, Productive & Punctual - Safe environments allow people to learn, create and work. Perfect for schools, universities, manufacturing where life safety, scheduled bells and zoned paging are essential.
VoIP / SIP-Based Public Address - Paging can be done with a single SIP extension. Can be integrated with any SIP based phone system or PBX.
Multi-Zoned Paging - Supports 10 multicast paging groups and audio prioritization.
Flexible - Includes a line-in for background music, a line-out for connecting to analog amplifiers, a remote amp fault sensor, audio-controlled relay/remote amplifier enabling and DTMF entries for selecting analog paging zones. Delayed pages with call buffering.
Night Ring - Offers Loud/Night ringer function using the second SIP extension.
Stored Messages - Supports up to 9 uploadable pre-recorded page messages.
Direct Page - Can receive pages directly from IP phones and other SIP devices that support multicast.
Highly Secure - Include TLS and SRTP encryption and enhanced security for IP Endpoints, including mutual authentication providing security for either local or cloud-based SIP integration. Paging security codes prevent unwanted SIP calls.
Management & Provisioning - WebGUI with HTTPS or HTTP web-based configuration and automated provisioning using HTTPS, HTTP or TFTP. Built-in diagnostics and configurable event generation for device health and status monitoring. 802.11q VLAN tagging support.
Ordering
#
Model #
Description
Availability
1
SN420/POE/DC
VoIP/SIP to Analog Paging Adapter.� POE or DC Powered.
SIP to Analog Paging Gateway - Re-use existing Analog Amplifiers and Speakers with SIP/VoIP PBX Systems for Public Address.
Be Safe, Productive & Punctual - Safe environments allow people to learn, create and work. Perfect for schools, universities, manufacturing where life safety, scheduled bells and zoned paging are essential.
VoIP / SIP-Based Public Address - Paging can be done with a single SIP extension. Can be integrated with any SIP based phone system or PBX.
Multi-Zoned Paging - Supports 10 multicast paging groups and audio prioritization.
Flexible - Includes a line-in for background music, a line-out for connecting to analog amplifiers, a remote amp fault sensor, audio-controlled relay/remote amplifier enabling and DTMF entries for selecting analog paging zones. Delayed pages with call buffering.
Night Ring - Offers Loud/Night ringer function using the second SIP extension.
Stored Messages - Supports up to 9 uploadable pre-recorded page messages.
Direct Page - Can receive pages directly from IP phones and other SIP devices that support multicast.
Highly Secure - Include TLS and SRTP encryption and enhanced security for IP Endpoints, including mutual authentication providing security for either local or cloud-based SIP integration. Paging security codes prevent unwanted SIP calls.
Management & Provisioning - WebGUI with HTTPS or HTTP web-based configuration and automated provisioning using HTTPS, HTTP or TFTP. Built-in diagnostics and configurable event generation for device health and status monitoring. 802.11q VLAN tagging support.
The SN420 SIP to Analog Paging Adapter is a specialized VoIP gateway that interfaces between SIP and analog paging systems enabling SIP Multicast-based audio sources. The unit is configurable to support two separate SIP extensions. SIP extension one (1) passes audio through to the analog output spoken from the caller's handset. SIP extension two (2) plays a bell audio that can be used as a night ringer when configured in a night ring group.
The unit includes a “Line In” RCA 10K Ohm Hi-Z input for connecting the device to audio sources, such as a music source. It also has an RCA line-out (10K Ohm Hi-Z) port for connecting to an external audio amplifier. The device is also equipped with a Fault Sense Input, a 600-Ohm Audio Output (Positive or Negative) and Page Start relay contact.
The SN420 can be powered using the Ethernet POE port, natively suppled 48VDC power or from AC wall mount transformer. This device has been tested as interoperable with all major brands of analog amplifiers on the market.
The SN420 is designed to inter-connect with most Analog based Amplifiers for Paging. As a gateway, the product allows integration of SIP based on-premise or cloud phone systems with legacy Paging and Notification systems.
