SIP Paging Systems
SmartNode SN430 VoIP/SIP Standalone Multicast Microphone



This next-generation push-button VoIP microphone integrates with SIP-based public address, emergency notification or intercoms systems.


Overview

The Patton SN430 is a VoIP push-button microphone for use in SIP-based paging systems used for public address, emergency notification or intercoms.  The device enables either live or buffered announcements directly to VoIP audio endpoints that support multicast.



The microphone is part of Patton’s SmartNode portfolio of VoIP-based Public Address & Mass Notification products and operates seamlessly with SmartNode Paging Servers, Analog Paging Adapters and SIP Speaker systems.  However, it will interoperate with any SIP based IP-PBX servers, IP Phones and other endpoints using multicast.



Ideal for live paging in schools, retail shops, factories and warehouses, pages can be immediately distributed or delayed allowing the user to record a message while the page button is pressed. Once the page button is released, the page will be sent.



The SN430 supports multiple user accounts, with separate log in credentials and profiles.

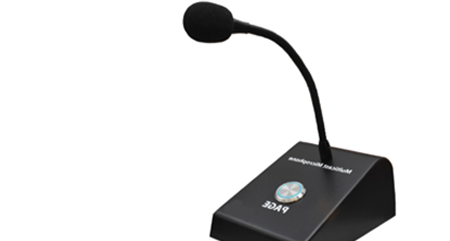

The design is both rugged and ergonomic with the microphone mounted on a 12-inch flexible shaft and sturdy desktop base design.



The device is easily provisioned, configured and managed with support for auto-provisioning and an intuitive web-based GUI.



Features
  • All-IP VoIP Paging - This microphone is for use in SIP-based paging systems used for public address, emergency notification or intercoms.
  • SIP & Multicast - Enables one-to-many communication over a local IP network. IGMP multicast is sent via UDP packets from a multicast server to a multicast receiver.
  • Interoperable - Companion to Patton�s SmartNode Paging Servers, Analog Paging Adapters and SIP Speaker systems, but interoperates with any SIP based IP-PBX servers, IP Phones and other endpoints that support multicast.
  • POE or DCE Powered - Powered using either PoE 802.3af or an external 12VDC Power Supply (not included).
  • Push-Button Operation - Push-button activated paging to broadcast messages to IP Phones, Speakers or other SIP enabled endpoints.
  • Live Paging - Ideal for live paging in schools, retail shops, factories and warehouses.
  • Delayed Send - Delayed page support allows the user to record a message while the page button is depressed. Once the page button is released, the page will be sent.
  • Multi-User - Supports multiple user accounts, with separate log in credentials.
  • Sleek Design - The microphone has a 12-inch flexible shaft and sturdy desktop base design and can be wall mounted.
  • Easy Management & Provisioning - Can be automatically provisions and has an intuitive web-based Graphical User Interface.
