Products  >  Unified Communications  >  T1/E1/PRI Enterprise VoIP CPE  >  T1/E1/PRI VoIP Routers  >  SmartNode SN4980A View Printable

T1/E1/PRI VoIP Routers

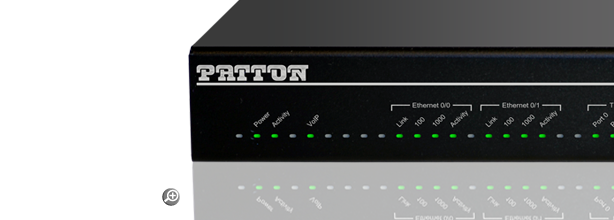

SmartNode SN4980A PRI VoIP Gateway-Router | 1 or 4 T1/E1/PRI interface for up to 120 simultaneous phone or fax calls



IP-enable legacy PBX systems with an Enterprise-class SmartNode 4980A VoIP Gateway-Router-eSBC. Supporting up to 120 concurrent VoIP calls, the SN4980A with built-in IP Router enables Enterprises to connect existing PBX systems with advanced IP telephony services and the PSTN.
Overview
Cloud Enabled The SmartNode™ 4980A VoIP Gateway-Router-eSBC allows Enterprises to IP-enable their legacy PBX systems. Evolving from Patton’s award winning SmartNode 4980 Series, the next generation SmartNode 4980A Series comes now with more state of the art features such as SIP-TLS, SRTP, TR-069, Patton Cloud connect, Survivability features, and much more.

Like every SmartNode™, the SN4980A supports every industry-standard CODEC to deliver toll-quality voice on every call. The Unified Communications Agent™ (UCA) provides any-to-any multi-path switching (simultaneous SIP, ISDN, and POTS calls with routing and conversion between TDM/PSTN and IP/Ethernet networks—plus T.38 and SuperG3 FAX). VoIP-over-VPN with voice encryption provides secure voice and data via IPsec, OpenVPN, or L2TP tunneling protocol in addition to SIP-TLS & SRTP. The advanced call-router functionality includes least-cost call routing with flexible dialed-number plan support.

The SmartNode survivability suite combines PSTN fallback, SIP Registrar and IP-link redundancy to ensure business continuity in case the IP network fails. Patton’s DownStreamQoS™ delivers the advantage of clear, uninterrupted voice-and-data communication. Furthermore, SmartNode’s unique high-precision clock delivers first-line IP telephony service in demanding ISDN and DECT environments with reliable FAX and modem performance. In addition, SmartNode delivers a smooth transition to All-IP with strong number portability support accepting incoming calls from the PSTN throughout the VoIP service provider's number porting process. Enterprise Session Border Controller capabilities include transcoding for up to 60 channels, SIP service demarcation, and SIP security.  Reduce WAN-access bandwidth requirements by converting high-bandwidth G.711 calls on your LAN into lower-bandwidth G.723 calls for WAN transport.

Preserve investments in legacy phone equipment while taking the next steps toward All-IP unified communications with the SN4980A VoIP Gateway-Router-eSBC. Providing one to four T1/E1/PRI and two 10/100/1000 Ethernet ports for up to 120 VoIP calls, the SN4980A with built-in IP Router delivers secure, prioritized unified communications.


Applications
Convert Legacy PBX to VoIP
SmartNode 4980


Features
  • Trinity OS - Advanced feature set including SIP TLS/SRTP, IPv6 ready, and Cloud capable Software Comparison
  • 15 to 120 VoIP calls—with up to four T1/E1/PRI ports and dual Gigabit Ethernet ports.
  • VoIP Transcoding Option—Up to 60 channels for WAN bandwidth optimization.
  • Proven Interoperability—SIP interop with major IP PBX, softswitch and VoIP Service Providers. Over 100,000 SmartNode deployments worldwide. ISDN/PSTN compliance in nearly every country.
  • QoS and Security—Deliver secure, toll-quality voice communications with Patton’s DownStreamQoS™ with adaptive traffic management and shaping—plus secure voice-over-VPN with AES/DES strong encryption.
  • Transparent Telephony Features—Complex number manipulation and mapping for seamless integration with existing infrastructures, CLIP, CLIR, hold, transfer and much more.
  • High Precision Clock—Delivers DECT PBX interoperability with reliable fax performance.
  • Flexible Mounting Options—The device can be placed on a desktop or installed in a 19-inch rack using the optional rack ear kit (INS-KIT-RACKEARS-11/19).
  • Supported by SmartNode™ Redirection Service: A free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers (Learn More).


Ordering

Product Change Notice:
Due to the fast evolvement of VoIP, routing, and SBC functionalities being developed by Patton for the SmartNode product line, more and more system memory is being required. To cope with the increased memory needs, accommodating features being made available in the future, the hardware of SmartNode products need to go along, requiring being upgraded as well. All new hardware (SN4980A) support Trinity Software only.
See the Product Change Notice for more details.
Current SKU Replacement SKU(s)

or Enter Manually



# Model # Description Availability
1 SN4980A/1E15V30HP/EUI SmartNode GW-eSBC, 1 E1/T1 PRI, 15 VoIP Calls upgradeable to 30, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), High Precision 5ppm Clock, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

2 SN4980A/1E30VHP/EUI SmartNode GW-eSBC, 1 E1/T1 PRI, 30 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), High Precision 5ppm Clock, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

3 SN4980A/1E30VHP/EUI-XOVER SmartNode GW-eSBC, 1 E1/T1 PRI, 30 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), High Precision 5ppm Clock, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU, 1x E1/T1 X-Cable General Availability

 Accessories

4 SN4980A/4E120VRHP/EUI SmartNode GW-eSBC, 4 E1/T1 PRI, 120 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

5 SN4980A/4E30V120RHP/EUI SmartNode GW-eSBC, 4 E1/T1 PRI, 30 VoIP Calls upgradeable to 120, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

6 SN4980A/4E30V60RHP/EUI SmartNode GW-eSBC, 4 E1/T1 PRI, 30 VoIP Calls upgradeable to 60, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

7 SN4980A/4E60VRHP/EUI SmartNode GW-eSBC, 4 E1/T1 PRI, Trinity Only, 60 VoIP Calls not upgradeable, or 15 SIP-SIP calls (SIP b2b UA) upgradeable (max. 80), Failover relay, High Precision 5ppm Clock, SIP-TLS, SRTP, 2x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories
