What is a VoIP IAD? A VoIP IAD (see What is VoIP?) is a multi-functional networking device (Integrated Access Device or multiservice access gateway) that provides a WAN-access interface in addition to IP routing and a voice gateway services (see What is a VoIP Gateway?). Installed on the customer premise, the VoIP IAD is classified as customer-premise equipment (CPE). While there is some debate on the topic, a VoIP IAD is generally considered to be more efficient and cost-effective than a multi-unit CPE solution for most business-class IP-telephony applications (see the white paper CPE Architecture: When does All-IP Equal All-in-One?)

Order the Free SmartNode IAD Products and Solutions Guide


Show Me: VoIP IADs (multiservice access gateway products)




Digital ADSL VoIP IAD

SmartNode 4650 - Digital ADSL VoIP IAD (integrated access devices & multiservice access gateway)

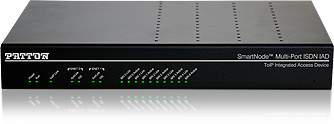

SmartNode 4650
SmartNode� 4650 ISDN ADSL VoIP IAD with up to 5 BRIs & 8 simultaneous voice channels. Integrated ADSL2+ broadband access router connects ISDN networks to the world of voice over IP for converged voice & data services that exceed ISDN standards.

Hybrid VoIP IAD

SmartNode 4670 - Hybrid VoIP IADs - multiservice access gateways

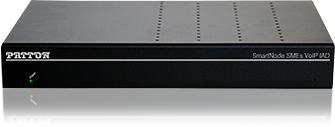

SmartNode 4670
Supporting 8 to 16 concurrent VoIP calls, the SN4670 VoIP IAD with built-in G.SHDSL, EFM, fiber, or ADSL WAN route connects ISDN-PBX, analog fax and phone-even audio-intercom system-with advanced IP telephony service and the PSTN.

Analog Serial VoIP IAD

SmartNode 4830 - Analog Serial VoIP IADs (multiservice access gateway & integrated access devices)

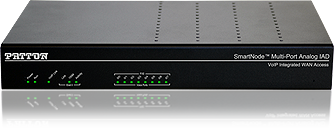

SmartNode 4830
The SmartNode� 4830 Analog Serial VoIP IAD provides integrated synchronous PPP and Frame Relay WAN access. Up to 8 FXS/FXO ports connect analog phone/fax and PBX lines to the or private IP network for bundled VoIP, data, and VPN services.

PRI Enterprise VoIP IAD

SmartNode 4830 - Analog Serial VoIP IAD (integrated access device) & & multiservice access gateway

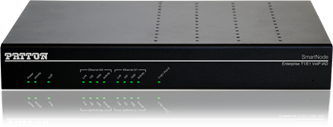

SmartNode 4990A
IP-enable legacy PBX systems with one Enterprise-class SmartNode 4990 VoIP Integrated Access Device. Supporting up to 120 concurrent VoIP calls, the SN4990 with built-in WAN enables broadband providers to connect existing PBX systems with advanced IP telephony services and the PSTN.


Teach Me: What is a VoIP IAD (What are integrated access devices?)


A Voice-over-IP Integrated Access Device (VoIP IAD) integrates three networking devices (VoIP Gateway, IP Router, and Internet access modem) into a single unit. By reducing the number of devices required to implement Internet telephony, a VoIP IAD simplifies network architecture and lowers the costs of installation, operation and maintenance. Currently popular modem specifications implemented in VoIP IADs include symmetrical ITU-T recommendation G.991.2 (a.k.a. G.SHDSL), asymmetrical ADSL2+, and VDSL2, which may be configured for symmetrical or asymmetrical line rates. VoIP IADs are sometimes referred to by other names, including Integrated Services Router (ISR), Multiservice Access Router (MSAR), and Multiservice Business Router (MSBR).

Typical VoIP IAD Applications
VoIP IADs can address various technical and practical challenges when implementing packet-based voice communications systems and/or unified communications (UC) solutions. Some common application scenarios are described below.

Convert Legacy PBX and FAX to VoIP
For the small to medium enterprise, the PBX represents a significant investment. While migrating to an ITSP service can save on recurring expenses, replacing that working legacy PBX can be a hard pill to swallow. And then there is the fax machine you still can't do without. A VoIP IAD offers a solution that combines the best of both world's as shown in the drawing below:



All-IP Migration with Fallback/Failover to Alternate Service Provider
Many enterprises, from small to large, want to transition to All-IP IP communications, yet have concerns about reliability and/or existing PSTN service contracts. Enter the VoIP IAD. Now the existing legacy PBX and PSTN connection can be preserved, while the new IP-PBX is introduced, tested, and proven. A legacy T1/E1/PRI interface provides failover to a secondary provider or alternate WAN link to provide business continuity in the event of IP network failure.


VoIP IAD Terminology
Short Glossary of Related Acronyms
CPE - Customer Premise Equipment
DSL - Digital Subscriber Line
IP - Internet Protocol
ISDN - Integrated Services Digital Network
ITSP - Internet Telephony Service Provider
LAN - Local Area Network
PDU - Protocol Data Unit
PRI - Primary Rate Interface
PSTN - Public Switched Telephone Network
QoS - Quality of Service
RTP - Real time Protocol
SHDSL - Symmetrical High-speed DSLV
SIP - Session Initiation Protocol
SRTP - Secure Real-time Transport Protocol
TDM - Time Division Multiplexing
TLS - Transport Layer Security
vDSL - Very-high-bit-rate DSL
VoIP - Voice over IP
WAN - Wide Area Network

 IAD Synonyms
ISR - Integrated Services Router
MSAR - Multiservice Access Router
MSBR - Multiservice Business Router


Help Me: VoIP IAD Technical Help


Patton offers an extensive online library of technical information to help you get your SmartNode VoIP IAD up and running fast. Patton's web-based FAQs, configuration notes, and application notes provide the detailed knowledge you need to install, configure, troubleshoot and maintain your Patton VoIP IAD. And these helpful resources are all free right here on www.patton.com. Patton stands behind our high-quality VoIP IAD products-world-renowned for set-it-forget-it reliability and stability-with live email and phone support plus lifetime downloadable software updates absolutely free of charge.



All-IP eSBC IADs
SmartNode, SN5300
eSBC + Router + IAD | Up to 60 SIP Sessions with optional G.SHDSL
SmartNode, SN5490
eSBC + Router + IAD | Up to 60 SIP Sessions with optional G.SHDSL, ADSL/VDSL, X.21, Fiber
SmartNode, SN5530
eSBC + Router | 2 to 8 BRI ports for up to 16 simultaneous phone or fax calls
SmartNode, SN5540
eSBC + Router | 2, 4 or 8 analog ports for up to 8 phone or fax calls
SmartNode, SN5550
eSBC + Router | 2FXS/2S0 or 4FXS/4S0 ports for up to 8 phone or fax calls
SmartNode, SN5570
eSBC + Router | 1 or 2 T1/E1/PRI interface for up to 30 simultaneous phone or fax calls
SmartNode, SN5700
VoLTE/GSM VoIP Gateway & Session Border Controller | Up to 128 SIP Sessions (32 Transcoded) | Up to 4 FXS/FXO, 4 BRI or 1 T1/E1
Analog VoIP IADs
SmartNode, SN4830
Analog VoIP IAD | 2 to 8 ports for up to 8 phone or fax calls with ADSL, Fiber, G.SHDSL
SmartNode, SN4900
Analog VoIP Gateway | 12 -32 FXS ports for up to 32 phone or fax calls
SmartNode, SN5540
eSBC + Router | 2, 4 or 8 analog ports for up to 8 phone or fax calls
SmartNode, SN5550
eSBC + Router | 2FXS/2S0 or 4FXS/4S0 ports for up to 8 phone or fax calls
BRI VoIP IADs
SmartNode, SN5530
eSBC + Router | 2 to 8 BRI ports for up to 16 simultaneous phone or fax calls

T1/E1/PRI VoIP IADs
SmartNode, SN5570
eSBC + Router | 1 or 2 T1/E1/PRI interface for up to 30 simultaneous phone or fax calls
