VoIP Comparison - SmartNode Products by Interface Type

Select Connection Type:

View All

ISDN

SS7

Analog

eSBC

IAD

Appliances

Awards

Analog	SN200, 1-port	SN200	SN4140	SN5540	SN5550	SN4740	SN4400*	SN4900
Product Photo
Embedded Software	Trinity™	Trinity™	Trinity™	Trinity™	Trinity™	Trinity™	SmartWare™	SmartWare™
Patton Cloud Connect	Yes	Yes	Yes	Yes	Yes	Yes	Redirect Only	Redirect Only
Telephony Interfaces	FXS	FXS	FXS & FXO	FXS & FXO	FXS/FXO & BRI S0/T0	FXS (FXO soon)	FXO	FXO
Number of Telephony Ports	1	2 or 4	2,4 or 8	2,4 or 8	2,4,8 or 16	16,24,32,48,64,72,96 or 128	12,16,24 or 32	12,16,24 or 32
Call Capacity	1	Up to 4 Calls	Up to 8 Calls	Up to 8 Calls	Up to 16 Calls	Up to 128 Calls	Up to 32 Calls	Up to 32 Calls
VoIP Gateway (Converts TDM to SIP) Converts TDM to IP
USB Support (WiFi, Cellular Modem etc.) IP Routing, QoS, VPN, etc.
IP Router IP Routing, QoS, VPN, etc.			Optional			Optional
Number of Ethernet Ports	1 10/100	1 10/100	1 or 2 10/100/1000	2 10/100/1000	2 10/100/1000	2 10/100/1000	2 10/100	2 10/100
WAN Access				Fiber SFP G.SHDSL-EFM/ATM ADSL/VDSL Gigabit Ethernet	Fiber SFP G.SHDSL-EFM/ATM ADSL/VDSL Gigabit Ethernet			(Optional) Serial X.21 Serial V.35
Industrial version available

*The SN4400 only differs from the SN4900 in that it has WAN access, a single internal power supply, and 0� to 40� C operating temperature.

T1 / E1 / PRI

SN4170

SN4970A

SN5570

SN4980A

SN4990A

SN10100

Product Photo

Embedded Software

Trinity™

SmartMedia™

Patton Cloud Connect

Yes

Telephony Interfaces

T1/E1/PRI

Number of Telephony Ports

1 (2nd Fallback)

1 or 4

1 (2nd Fallback)

1 or 4

4, 8 or 16

Call Capacity

15 to 30

15, 30, 60 or 120

15 to 30

15, 30, 60 or 120

120 to 480

VoIP Gateway
Converts TDM to IP

USB Support
WiFi, Cellular Modem etc.

IP Router
IP Routing, QoS, VPN, etc.

Number of Ethernet Ports

1 or 2
10/100/1000

1
10/100/1000

2
10/100/1000

4
10/100/1000

Transcoding
Interconnect multiple VoIP networks

Yes

Optional

Yes

WAN Access

Fiber SFP
G.SHDSL-EFM/ATM
ADSL/VDSL
Gigabit Ethernet

High Density SS7	SN9000	SN10100	SN10200			SN10300
Product Photo
Embedded Software	SmartSignal™	SmartMedia™	SmartMedia™			SmartMedia™
Telephony Interfaces	T1/E1/PRI	T1/E1/PRI	T1/E1/PRI	DS3	STM-1	T1/E1/PRI	DS3	STM-1
Number of Telephony Ports	4 to 16	4 to 16	16 to 64	1, 2 or 3	1	16 to 1024	1, 2 or 3	1 to 15+1
Call Capacity	128 to 480	128 to 480	Up to 2,048			Up to 32,768
VoIP Gateway Converts TDM to IP
Number of Ethernet Ports	2 10/100/1000	2 10/100/1000	2 10/100/1000			2 10/100/1000

ISDN BRI

SN-DTA

SN4130

SN4150

Product Photo

Embedded Software

SmartWare™

Trinity™

Telephony Interfaces

BRI (NT)

BRI

BRI with FXS/FXO

Number of Telephony Ports

1 or 2

2,4 or 8

4 or 8

Call Capacity

2 or 4

4, 8 or 16

4 or 8

VoIP Gateway
Converts TDM to IP

IP Router
IP Routing, QoS, VPN, etc.

Number of Ethernet Ports

1
10/100

1 or 2
10/100/1000

WAN Access

IAD

SN4900

SN4990A

SN5200

SN5300

SN5490

Product Photo

WAN Access

(Optional)
Serial X.21
Serial V.35

Fiber
ADSL2+/VDSL2
G.SHDSL.bis
ATM/EFM

(Optional)
X.21

G.SHDSL.bis
(ATM or EFM)

G.SHDSL
Fiber
X.21
EFM

Embedded Software

SmartWare™

Trinity™

SmartWare™

Trinity™

SmartWare™
or Trinity™

Telephony Interfaces

FXO

T1/E1/PRI

N/A

Number of Telephony Ports

12,16,24 or 32

1 or 4

N/A

Call Capacity

12,16,24 or 32

15, 24, 30, 48, 60, 96, or 120

N/A

VoIP Gateway
Converts TDM to IP

IP Router
IP Routing, QoS, VPN, etc.

Number of Ethernet Ports

2
10/100

2
10/100/1000

5
10/100

4
10/100

2
10/100/1000

Transcoding
Interconnect multiple VoIP networks

Optional

eSBC

vSN

SN500

SN5300

SN5500

SN5530

SN5540

SN5550

SN5570

SN5600

Product Photo

Embedded Software

Trinity™

Telephony Interfaces

N/A

2, 4 or 8 BRI

2, 4 or 8 FXS/FXO

BRI with FXS/FXO

1 or 2 PRI

N/A

SIP Sessions

1 to 1,000's

4 to 30

4 to 60

4 to 200

4 to 1,000

Transcoded Calls

N/A

Up to 16

Up to 8

Up to 4

Up to 15

N/A

IP router
IP Routing, QoS, VPN, etc.

Number of Ethernet Ports

HW dependent

2
10/100/1000

4
10/100

2
10/100/1000

Transcoding

Roadmap

N/A

WAN Access

N/A

G.SHDSL.bis
(ATM or EFM)

G.SHDSL EFM&ATM, ADSL-VDSL

VDSL/ADSL
G.SHDSL.bis

N/A

VoIP Appliances	SNBX	SNOGA	SN-OSB
Product Photo
Operating System (OS)	Win 7	None	SUSE - Linux
Software	3CX	N/A	Unify - OpenScape Business
Telephony Interfaces	None	BRI/PRI FXS	BRI/PRI FXS
IP Router IP Routing, QoS, VPN, etc.
Number of Ethernet Ports	1	4 up to 6	4 up to 6
Transcoding Interconnect multiple VoIP networks

AWARD	WINNING MODEL
2016 COMMUNICATIONS SOLUTIONS Product of Year	SmartNode 5540 Series FXS eSBC-IAD

2015 INTERNET TELEPHONY Excellence Award	Patton Element Management System

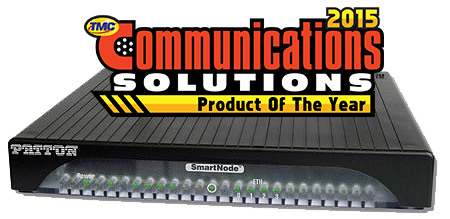

2015 COMMUNICATIONS SOLUTIONS Product of Year	SmartNode 5300 eSBC

2015 INTERNET TELEPHONY Product of the Year	SmartNode Open Gateway Appliance (SNOGA)

2013 Unified Communications Excellence Award	SmartNode 4940 VoIP Gateway

2012 Internet Telephony Product of the Year	SmartNode 4670 Hybrid VoIP IAD

2012 Internet Telephony Excellence Award	VoIP Gateways & Routers

2011 Internet Telephony Product of the Year	SmartNode 5400 eSBC

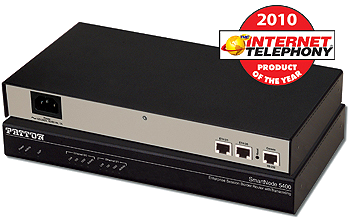

2010 Internet Telephony Product of the Year	SmartNode 5400 eSBC

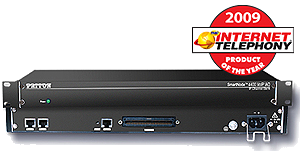

2009 Internet Telephony Product of the Year	SmartNode 4400 IpChannelBank Analog VoIP Router

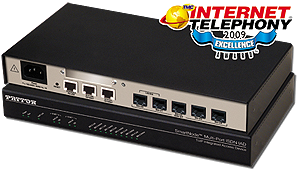

2009 Internet Telephony Excellence Award	SmartNode 4630 BRI So Digital VoIP Router

2008 Internet Telephony Product of the Year	SmartNode 4960 eSBC

2007 Unified Communications Product of the Year	SmartNode 4650 Digital G.SHDSL VoIP IAD

2007 Internet Telephony Product of the Year	Model S-DTA

2007 Internet Telephony Excellence Award	Model 4562

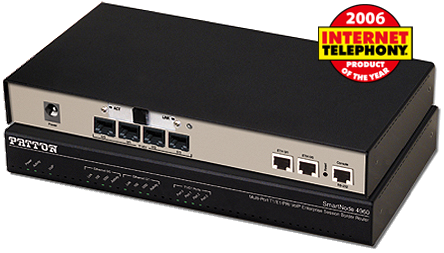

2006 Internet Telephony Product of the Year	SmartNode 4960 eSBC

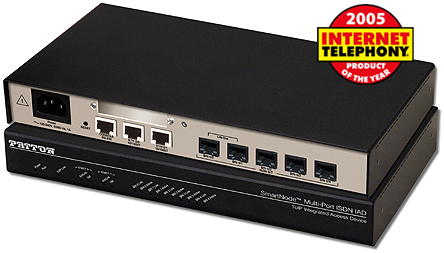

2005 Internet Telephony Product of the Year	SmartNode 4630 BRI So Digital VoIP Router
